ATL Saver Cell fuel cell with the Nuke Performance CFC Unit

Partno: 150-08-304
Partno: 150-08-305
Partno: 150-08-404
Partno: 150-08-405
Partno: 150-08-454
Partno: 150-08-455
Partno: 150-08-554
Partno: 150-08-555
Partno: 150-08-604
Partno: 150-08-605
Partno: 150-08-804
Partno: 150-08-805

Price:

€ 1915,00
€ 1977,50
€ 1915,00
€ 1977,50
€ 1937,50
€ 2000,00
€ 2117,50
€ 2181,25
€ 1968,75
€ 2031,25
€ 2045,00
€ 2107,50
    Add ons:

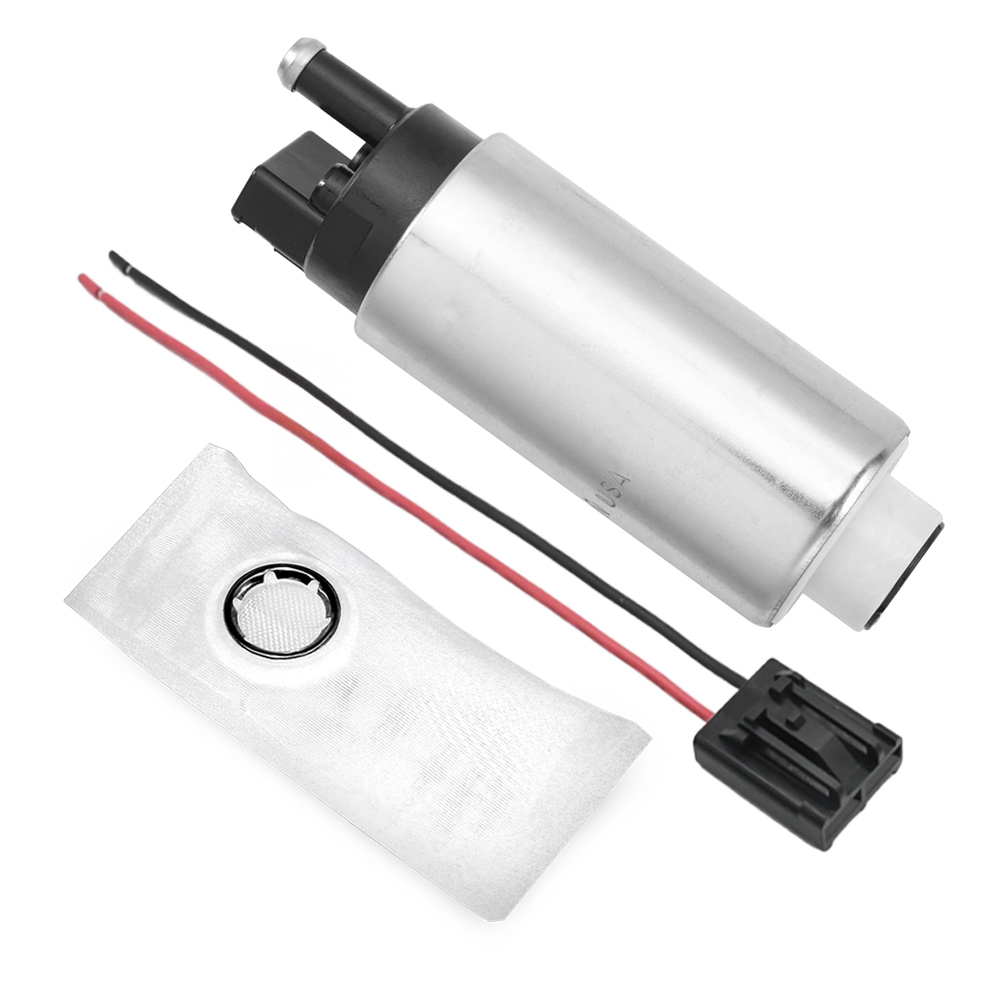

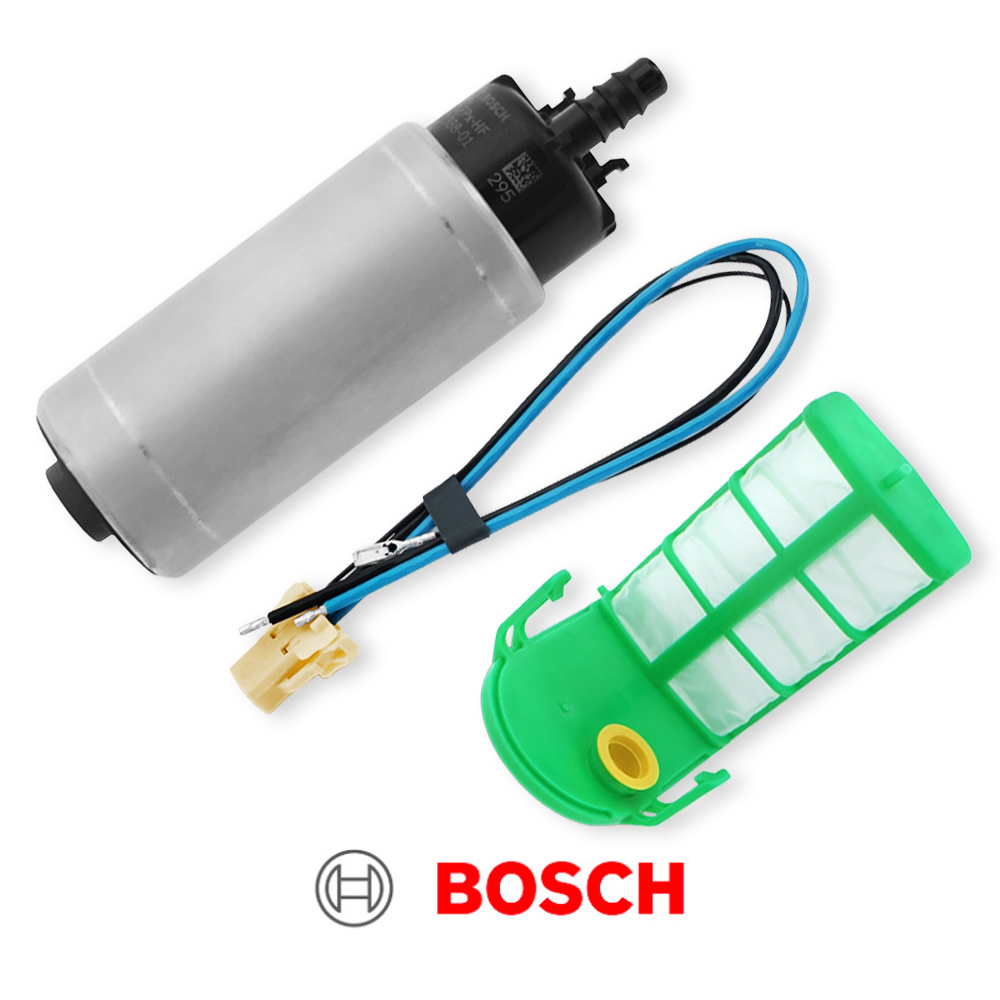

Add Lift Fuel Pump
X
Add High Pressure Fuel Pump
X
Add Fuel Pump Mounting Kit
X
Add Fuel Level Sender Unit
X
Add FIA Required Container
X
Add Fuel Cell Vent Kit
X
Add outlet AN-10 ORB Fitting
X
Add return AN-8 ORB Fitting
X
Add Remote Fuel Filler Kit
X
  You can only make one selection per category.
Available sizes:
CFC Unit Version:

   FAST SHIPPING WORLDWIDE
   60-DAY SATISFACTION GUARANTEE
   SAFE AND SECURE
PAYMENT METHODS

Product information

ATL Saver Cells are lightweight FIA FT3 -1999 approved fuel cells for all major racing and motorsports associations.
The well-known Saver Cells, constructed from a unique, tough plastic alloy, in combination with the Nuke Performance CFC Unit - drop-in fuel pump hanger with integrated surge tank functionality. Safe and easy, this is the optimal "all in one" solution for all motorsports applications.

 FIA FT3-1999 approved fuel cell
 Available in several sizes, for all needs
 Integrated 2 liter Fuel Surge Tank function
 Full foam baffling for petrol and E85
 Fits single or dual high-pressure fuel pumps
 New high-profile CFC Unit that fits all ATL fuel cells
 Low-profile fuel filler cap with integrated roll-over valve
 AN-10 ORB outlet / AN-8 ORB return

The ATL Saver Cells are suitable for use with carburetor-based fuel systems and with the integrated high-profile CFC Unit from Nuke Performance, which eliminates the need for an external surge tank which is other needed when running a fuel cell, it is a perfect use for fuel injected systems. Our selection of saver cells comes with yellow foam for petrol and E85.



 Combined with the Nuke Performance CFC Unit, with an integrated 2-liter surge tank, billet fuel pump hanger for 1-2 fuel pumps, and all the efficiency you need for your high-performance fuel system.
The cells come delivered with the Nuke Performance high-profile CFC Unit as fill plate replacement. The high-profile CFC Unit is the perfect solution for a simplified high-performing fuel system where safety is of uttermost importance. This setup eliminates the need for a space-consuming external surge tank. With all the needed fuel pumps mounted within the fuel cell itself, this is the only thing you need. This frees up space and weight and increases safety as fewer fuel line fittings are necessary and no external fuel pumps are used.




 The CFC Units use internal high-pressure fuel pumps, for any need between 200 - 2000hp.
The ATL fuel cells are delivered with the unique Nuke Performance CFC Unit with an integrated Fuel Surge Tank function and fit a single or dual high-pressure fuel pump from Deatschwerks, AEM, Ti Automotive, Walbro, Bosch, Fuelab, Aeromotive, and many more. It fits all common 39mm fuel pumps as well as the larger Deatschwerks DW400, Walbro GST450/520, Bosch BR540, and Aeromotive Stealth 450. This solution is ready to deliver steady fuel flow for demands anywhere between 200-2000 horsepower without fuel starvation, even during demanding driving conditions, thanks to the internal surge tank and the in-tank foam baffling.

The Nuke Performance high-profile Competition Fuel Cell Unit fits the most common fuel pumps. Together with the Nuke Performance fuel pump mounting kits, it has never been this easy to set up a high-performance fuel system.

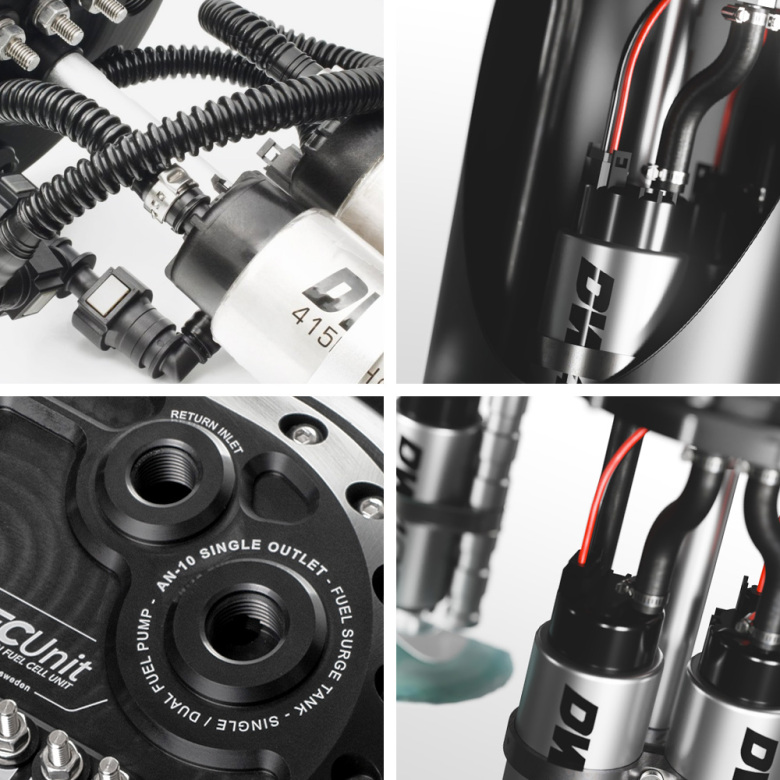

 How do mount fuel pumps within the ATL Saver cell and the integrated surge tank within the CFC Unit?
The single fuel pump mounted in the fuel cell functions as a pickup fuel pump that ensures that the high-pressure fuel pumps within the oversized 2 liter (0.53 gallons) surge tank always have enough fuel to maximize fuel flow and minimize the risk of starvation that can seriously harm your engine. For more information, view the product manual. The high-profile edition CFC Unit is delivered with everything you need to install the fuel pumps of your selection, but we recommend adding one of our fuel pump mounting kits for optimal functionality. All fuel pumps are securely mounted in all conditions thanks to the billet fuel pump brackets.
 Fuel Pump Mounting Kits : Learn more about fuel pump setup
 Additional Fuel Pumps : Explore our selection of fuel pumps



 All ports feature oversized fittings to ensure maximum fuel flow and minimal flow loss, even during high fuel demand and demanding use in motorsports.
The new high-profile version of the Nuke Performance Competition Fuel Cell Unit is available in various sizes and comes with an AN-10 ORB outlet and AN-8 ORB return inlet. It features an oversized, high-flow AN-10 ORB outlet that combines the internal fuel pumps into a single fuel line, reducing the need for external equipment, hoses, and fittings. The unit also includes a rollover-protected vent fitting that is AN-6 (3/4 UNF), which can be replaced with AN-6 to AN-10 as needed. Please note that the outlet and return AN-6, AN-8, AN-10, and AN-12 fittings are sold separately as accessories.
 Outlet fittings :
AN-10 ORB to AN-6 Male Part # : 700-04-108
AN-10 ORB to AN-8 Male Part # : 700-04-109
AN-10 ORB to AN-10 Male Part # : 700-04-110
AN-10 ORB to AN-12 Male Part # : 700-04-111
 Return fittings :
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-12 Male Part # : 700-04-107



 NEW : The Fuel Cell Vent Kit AN-6 fits straight to the vent valve of the CFC Unit for easy installation.
The CFC Unit is equipped with a roll-over protected AN-8 (3/4 UNF) to AN-6 Male vent fitting, and the easiest way to route the vent line into a safe and functional position is to accommodate a fuel cell vent kit from Nuke Performance. Available in several sizes, from AN-6 to AN-12, you can choose the kit that suits your needs the best. If you want to use a larger vent line than AN-6, you also need to swap the fitting on the vent valve, view the assortment here. The vent kit is delivered with a 1m (3.3ft) nitrile fuel hose and a universal air filter that prevents debris to get into your fuel system.
Fuel Cell Vent Valve AN-6 Part # : 150-22-206
AN-8 (3/4 UNF) to Male Adapters : View assortment



 Full foam baffling in an affordable FIA-approved fuel cell. For FIA or FT3 motorsports, the fuel cell must be encased, make sure to add the additional lightweight aluminum container if needed.
The ATL saver cells have FIA FT3-1999 approval for all major motorsports worldwide, but if used in FIA or FT3 motorsports, they must be encased in an aluminum, or steel container. You can select whether or not to include the container when placing your order. We advise against building your own container without consulting ATL, as any sizing issues may void the warranty.

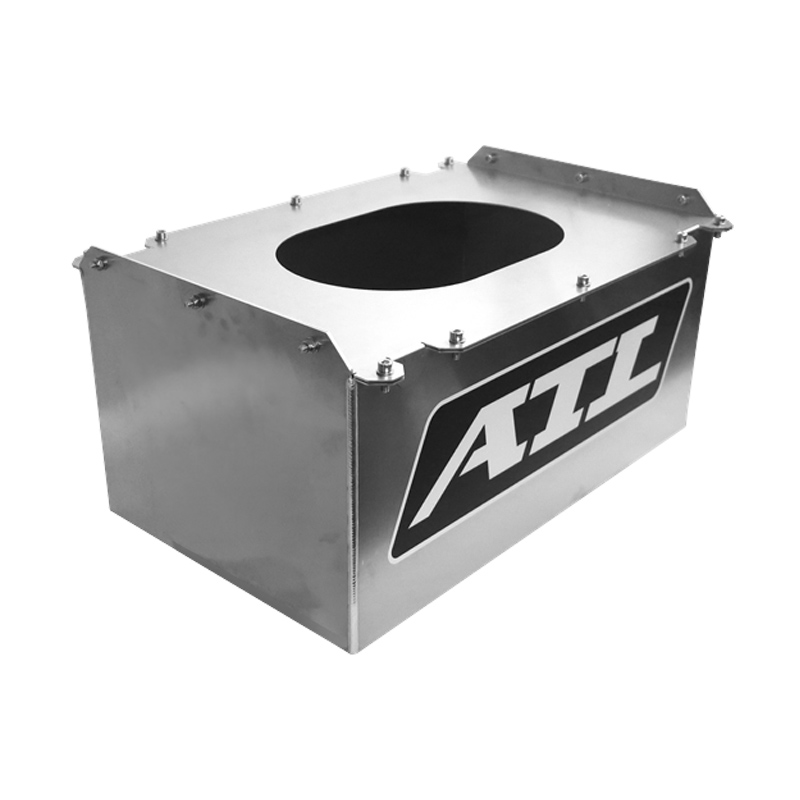

ATL Container 30 liter Part #: 150-SA-AA-041

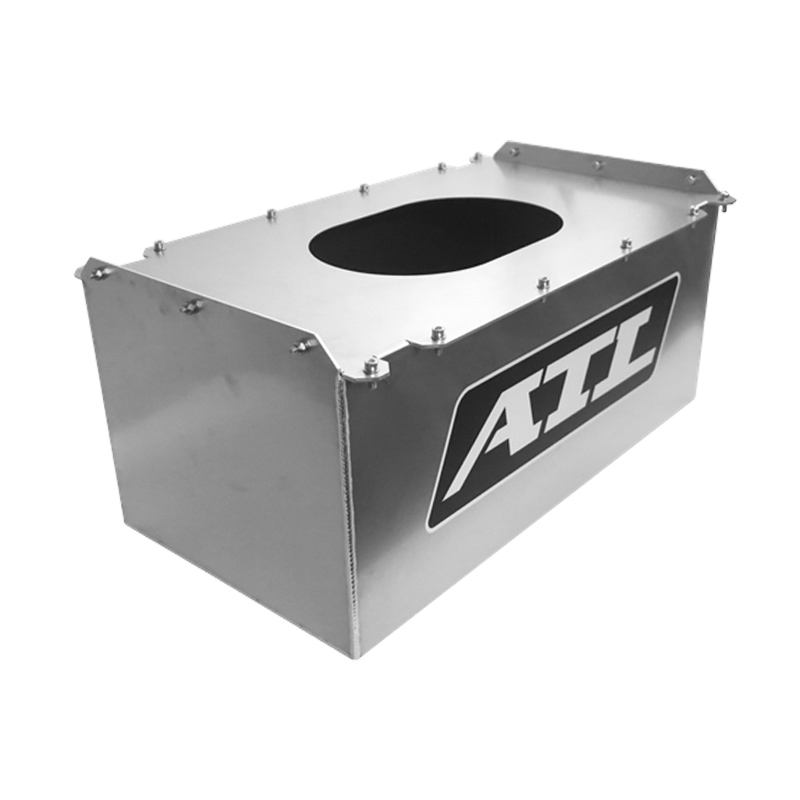

ATL Container 40 liter Part #: 150-SA-AA-051
ATL Container 45 liter Part #: 150-SA-AA-061
ATL Container 60 liter Part #: 150-SA-AA-071

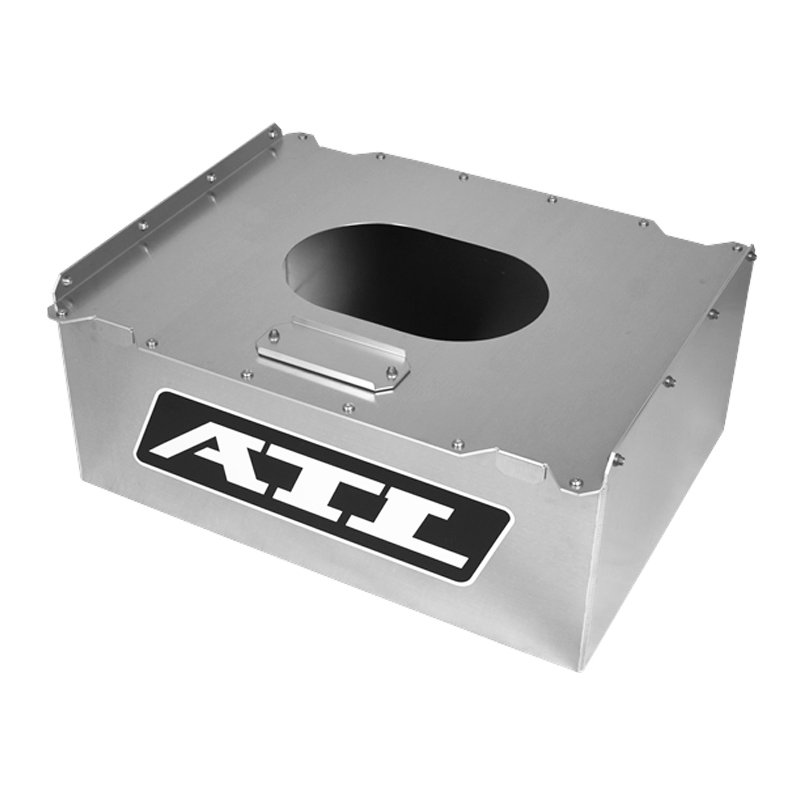

ATL Container 80 liter Part #: 150-SA-AA-101



 The ATL Well Cell is the FIA-approved fuel cell that fits straight into your spare tire compartment. Space-efficient and homologated fuel cell installation, equipped with the Nuke Performance CFC Unit.
Changing from a stock fuel tank to an aftermarket, FIA-approved fuel cell has never been this easy. The ATL "well cell" of 45liter fits straight into your spare tire compartment and houses the Nuke Performance CFC Unit. For this fuel cell, there is no aluminum container available, but when using the stock compartment you only need to add a lid of some kind, and you are set.



 How does the Nuke Performance Competition Fuel Cell Unit work?
The CFC Unit works as a fuel pump hanger with an integrated surge tank for motorsports applications where safety and functionality are of uttermost importance. It is designed to mount directly to an aftermarket fuel cell with a standardized 24-bolt pattern. For more information about the functionality of the CFC Unit, view our Youtube video explaining its functions or visit our FAQ guidé that tells you more about the CFC Unit.
 Youtube : How does the CFC Unit from Nuke Performance work?
 FAQ : How does the CFC Unit work?
 Product Manual : Download our detailed product manual!



 How to connect fuel pumps to the electrical connectors and fuel lines?
The Nuke Performance CFC Unit has over-dimensioned electrical connectors, which ensures that the connectors won't overload when running on high amperes. It features two electrical connectors for the lift fuel pump and three connectors for the high-pressure fuel pumps, allowing for a dual fuel pump setup in two steps or simultaneously if desired. The fuel line connects to the included barb fittings, but for easy maintenance, fail-proof functionality, and long-term durability - especially when running alcoholic fuels like ethanol - we recommend using one of the fuel pump mounting kits for your selected fuel pumps.



 Low profile fuel filler cap or remote fill neck for 50mm fuel fill hose?
The CFC Unit is delivered with a low-profile filler cap with integrated roll-over protection. But for those who prefer to utilize a remote fill, we offer a remote filler neck for a 50-52mm fuel fill hose. It fits straight into the CFC Unit and uses the integrated roll-over protection mounted on the underside of the CFC Unit. We also offer a fill hose and filler cap solution for remote mount applications, making the fuel-filling process for the ATL fuel cell as trouble-free as possible.
Remote filler neck for 50mm fuel hose Part # : 150-05-202
Remote quick lock filler cap Part # : 150-30-101
Fuel filler hose kit, 90cm (3ft) Part # : 150-31-201




 Choose the right Fuel Level Sender Unit for your aftermarket fuel cell.
To get the best experience, an accurate fuel level sender is necessary for most applications. The Nuke Performance high-profile CFC Unit is compatible with the 5-bolt SAE pattern used by most common fuel level senders. It comes with a lightweight block-off plate that can be replaced with a fuel level sender of your choice. If you want the CFC Unit to include an FLS, remember to choose the correct length when placing your order.
 0-90 Ohms FLS Unit : View our range of fuel level senders



 Made in Sweden with high demands from worldwide motorsports.
Co-developed with worldwide motorsports teams, it has become a common sight in motorsports such as time-attack, drifting, and GT racing. Saving weight is often equally important as chasing horsepower, and several of our customers, have been able to perform weight savings of more than 10kg by upgrading to our compact and lightweight solutions. The ATL Saver Cell fuel cell with the Nuke Performance high-profile CFC Unit is delivered in a perfect combination with the classic ATL ltd saver cells and the Competition Fuel Cell Unit from Nuke Performance that is developed, designed, and manufactured in Sweden and with the highest possible quality with the same hallmark as all the other parts in the lightweight Nuke Performance motorsports range.

There is no substitute for the quality of Nuke Performance!


 ATL Saver Cell Specifications:
For more information about CFC Unit specifications, view the product manual.

 30 liter Saver Cell Part #  150-08-304
 Length 505mm (19.88”)
 Depth 305mm (12.00”)
 Height 223mm (8.78”)
 Weight N/A, including ATL CFC Unit
 Fuel capacity 30-liter (7.92 gallons)
 Container Part # 150-SA-AA-041

 40 liter Saver Cell Part # 150-08-404
 Length 602mm (23.70”)
 Depth 314mm (12.36”)
 Height 254mm (10.00”)
 Weight N/A, including CFC Unit
 Fuel capacity 40-liter (10.56 gallons)
 Container Part # 150-SA-AA-051

 45 liter Saver Cell Part # 150-08-454
 Length 502mm (19.76”)
 Depth 437mm (17.20”)
 Height 234mm (9.21”)
 Weight N/A, including ATL CFC Unit
 Fuel capacity 45-liter (11.88 gallons)
 Container Part # 150-SA-AA-061

 45 liter "Well Cell" Part # 150-08-554
 Diameter Ø 553mm (21.77”)
 Height 227mm (8.93”)
 Weight 9.2kg (20.28lb), including ATL CFC Unit
 Fuel capacity 45-liter (11.88 gallons)
 Container Part # No container available

 60 liter Saver Cell Part # 150-08-604
 Length 602mm (23.70”)
 Depth 437mm (17.20”)
 Height 234mm (9.21”)
 Weight N/A, including ATL CFC Unit
 Fuel capacity 60-liter (15.85 gallons)
 Container Part # 150-SA-AA-071

 80 liter Saver Cell Part # 150-08-804
 Length 845mm (33.27”)
 Depth  435mm (17.13”)
 Height 235mm (9.25”)
 Weight N/A, including ATL CFC Unit
 Fuel capacity 80-liter (21.13 gallons)
 Container Part # 150-SA-AA-101



 Nuke Performance CFC Unit Specifications
For more information about specifications, view the product manual.

 Included CFC Unit Part # 150-05-203
 Minimum mounting depth 197mm (7.75")
 Mounting bolt pattern 6x10" 24-bolt pattern
 High-pressure fuel pump connector x 3 (max 125 ampere / each *)
 - Connector points 6 mm bolt connectors
 Pickup fuel pump connector x 2 (max 125 ampere / each *)
 - Connector points 6 mm bolt connectors
 Length 295mm (13.74")
 Width 194mm (9.88")
 Weight 2254g (4.96lb)
 For motorsports use YES
 Fits number of lift fuel pumps 1 x brushed fuel pump
 Fits number of high-pressure pumps 1-2 x brushed fuel pump
 Fuel compatibility Gasoline, Methanol, Ethanol, E85
 Fits additional venturi lift kit NO
 Internal surge tank volume Approximately 2.0 liter (0.53 gallons)
 Outlet port, thread AN-10 ORB, view assortment
 Return port, thread AN-8 ORB, view assortment
 Vent valve, thread AN-8 (3/4 UNF), view assortment

 * for reference only

 ATL Saver Cell with CFC Unit includes:
1 x ATL Saver Cell fuel cell of selected size
1 x Nuke Performance CFC Unit - ATL version
2 x 1/4" BSPP to Male barb 8mm hose fittings
1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
2 x 39mm inserts for high-pressure fuel pump bracket
1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x Low profile filler cap (remote fill neck available as accessory)
1 x Dual billet fuel pump bracket and adjustable pickup pump mount
1 x AN-8 (3/4 UNF) to AN-6 Male roll-over vent valve
1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern

 Download User Manual (.pdf)
 Accessories / Spare Parts
 FAQ : How does the Competition Fuel Cell Unit work?



 No modification is needed before installation
No modifications to the fuel cell are needed for the installation of the new high-profile version of the Nuke Performance CFC Unit.

 No fuel pumps are included with the CFC Units.
The CFC Unit is delivered without fuel pumps, if needed you select the preferred fuel pumps in our selection menu or see the available fuel pumps here.

Specifications

Technical information :
• Optional aluminium light weight container.
• Delivered without top plate, ready for the CFC Unit.
• 24 bolt pattern 6x10" fill plate fitment.
• Delivered with the Nuke Performance CFC Unit.
• FIA / FT3-1999 approved.
• Safe for E85, but need to be drained when stored.
• Modifications need to be performed prior to CFC Unit installation.
• No fuel pumps is included.


Inluded in the package :
1 x Nuke Performance CFC Unit
1 x ATL Saver Cell




FIA certification :
FIA certified fuel cells have a 5 year life, and can be recertified for a further 2 years up to a maximum of 7 years from the date of manufacture. Fuel Cells must be sent back to ATL for recertification to take place.

To comply with FIA regulations, Saver Cells must be installed within an aluminium container, please take into account the dimensions of the container and not the saver cell when checking chassis fitment.
It is not recommended for customers to build their own aluminium containers without consulting ATL as any sizing issues may invalidate warranty.


Modification of tank prior to installation :
With the new high-profile version of the Nuke Performance CFC Unit, no modifications of the fuel cell is needed prior to installation. If you have one of the low-profile versions of the CFC Unit and want to install this into your own ATL fuel cell, contact us and we will provide you with instructions of the needed modifications.

Measurements :
30 liter fuel cell :

Fuel cell : Length : 505 mm / Width : 305 mm / Height : 223 mm
Container : Length : 534 mm / Width : 326 mm / Height : 240 mm

40 liter fuel cell :

Fuel cell : Length : 602 mm / Width : 314 mm / Height : 254 mm
Container : Length : 638 mm / Width : 337 mm / Height : 270 mm

45 liter fuel cell :

Fuel cell : Length : 502 mm / Width : 437 mm / Height : 234 mm
Container : Length : 531 mm / Width : 464 mm / Height : 250 mm

45 liter "Well cell" fuel cell :

Fuel cell : Width : 553 mm / Height : 227 mm
Container : No container available for this version.

60 liter fuel cell :

Fuel cell : Length : 602 mm / Width : 437 mm / Height : 234 mm
Container : Length : 633 mm / Width : 461 mm / Height : 250 mm

80 liter fuel cell :

Fuel cell : Length : 845 mm / Width : 435 mm / Height : 235 mm
Container : Length : 881 mm / Width : 459 mm / Height : 250 mm


Fuel Pumps :
Please notice that no fuel pumps are included with this kit of Cell and CFC Unit. You can choose from a selection of fuel pumps when placing order. Visit each fuel pump for more information about flow and estimate horsepower. If you have more questions about choosing fuel pumps for your setup, contact us prior to placing order.
Suggested single lift pump:
1 x Ti Automotive / Walbro GST450
1 x Ti Automotive / Walbro GST520
1 x Deatschwerks DW300
1 x Deatschwerks DW400

Suggested single or dual high pressure pump: (within the surge tank)
1-2 x Ti Automotive / Walbro GST450
1-2 x Ti Automotive / Walbro GST520
1-2 x Deatschwerks DW300
1-2 x Deatschwerks DW400
