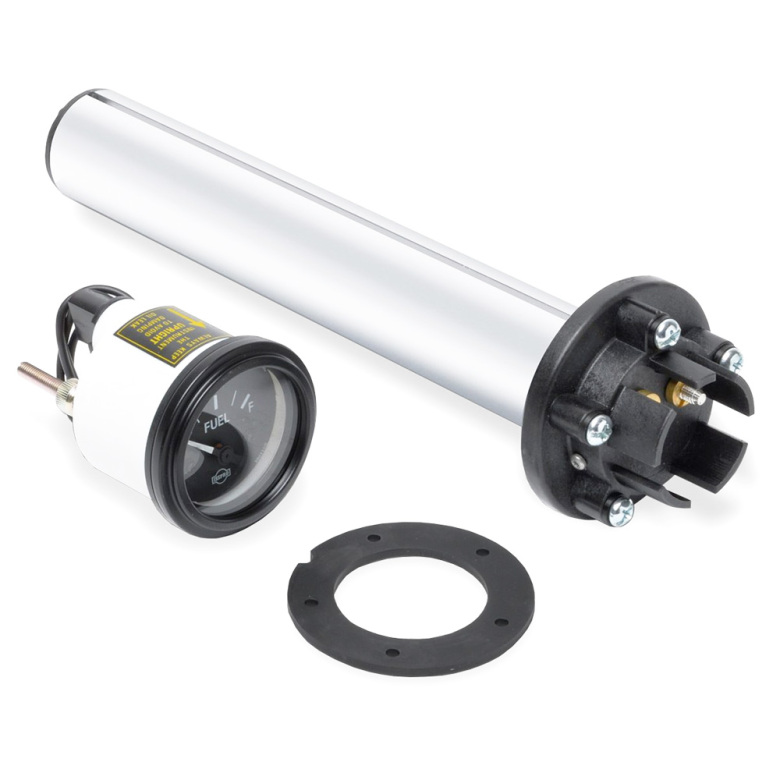

Fuel Level Sender 0-90 Ohms, 8" to 16"
Add Fuel Level Gauge 0-90 Ohm
Add a 0-90 Ohm fuel level gauge to your level sender. Only available in 0-90 Ohm version.
Choose to add a fuel level gauge to your fuel level sender.
Fuel Gauge OHM Rating 0-90 Ohms
Isspro fuel level gauge 0-90 Ohms for the Isspro fuel level sender units.
0-90 Ohms fuel level gauge to use with the Pyrotect / Isspro fuel level sender units for the Nuke Performance CFC Units.
0 Ohms : empty
90 Ohm : full
Manufactured by Isspro, in the USA.
Quantity : 1pcs
- Available sizes:
FAST SHIPPING WORLDWIDE
60-DAY SATISFACTION GUARANTEE
SAFE AND SECURE PAYMENT METHODS

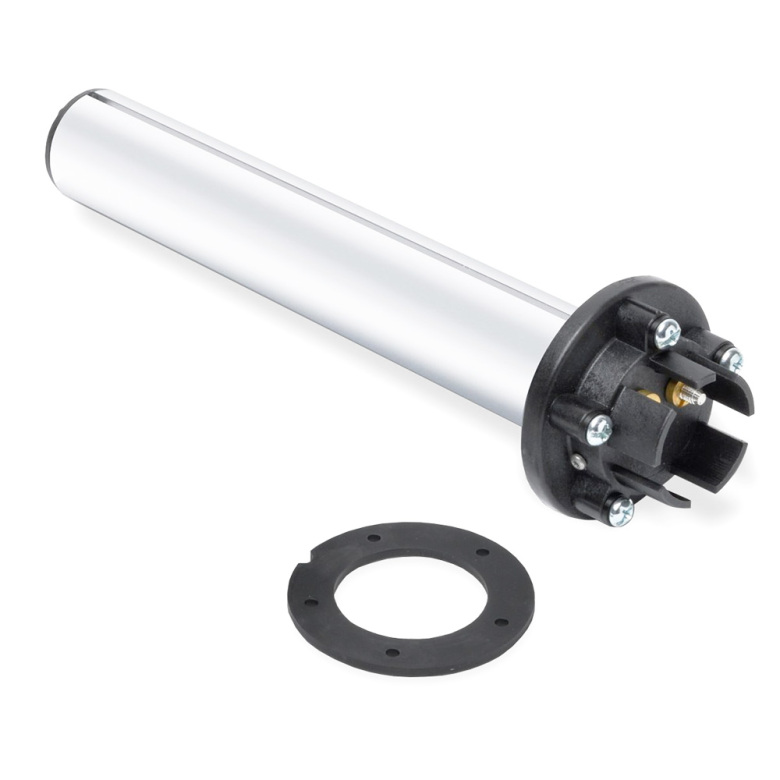

ISSPRO fuel level sending unit fits the Nuke Performance CFC Unit.
0-90 Ohms fuel level sending unit available with our without fuel gauge that fits standard SAE 5-bolt mounting pattern.
Fits fuel cells provided by Nuke Performance:
|150-FLS-08 : 203 mm / 8"||Pyrotect 6.25 gallon fuel cell
Pyrotect 8 gallon fuel cell
ATL 30 liter saver cell
ATL 45 liter saver cell
ATL 45 liter Well Cell saver cell
ATL 60 liter saver cell
ATL 80 liter saver cell
|150-FLS-09 : 228 mm / 9"||Pyrotect 10 gallon fuel cell
Pyrotect 12 gallon fuel cell
Pyrotect 15 gallon fuel cell
Pyrotect 18 gallon fuel cell
Pyrotect 22 gallon fuel cell
ATL 40 liter saver cell
AluCell 20 liter aluminum fuel cell
AluCell 40 liter aluminum fuel cell
AluCell 60 liter aluminum fuel cell
|150-FLS-10 : 254 mm / 10"||N/A|
|150-FLS-12 : 305 mm / 12"||Pyrotect 17 gallon fuel cell
AluCell 80 liter aluminum fuel cell
|150-FLS-13 : 330 mm / 13"||Pyrotect 24 gallon fuel cell|
|150-FLS-13 : 381 mm / 15"||Pyrotect 26 gallon fuel cell
Pyrotect 32 gallon fuel cell
|150-FLS-16 : 406 mm / 16"||N/A|
0 Ohms : empty
90 Ohms : full
Also available as 240-33 Ohms, available here.
Fuel level sending units for motorsports, aftermarket fuel cells
Fits the most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz, and more, and is the perfect match for the Nuke Performance Competition Fuel Cell Unit. Ordered with our without fuel level gauge.
I have lost my adapter plate/spacer for the fuel level sender unit, can I order a new one? My fuel level sender unit doesn´t fit the mounting point in the CFC Unit, what should I do?

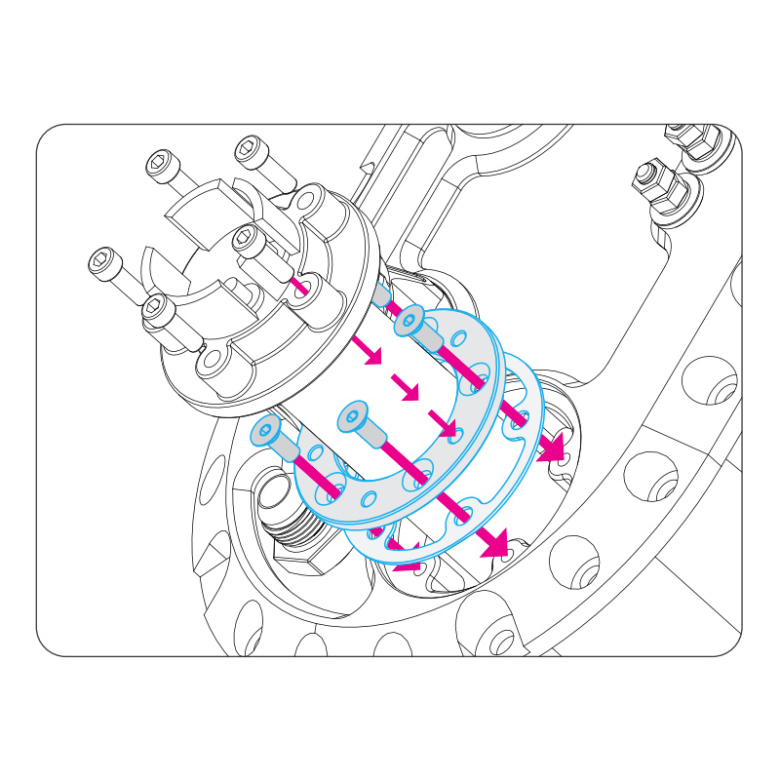

An adapter plate/spacer is needed to either mount a fuel level sender that has a wider diameter than the hole in the CFC Unit or uses the common asymmetric 5 bolt pattern often found on aftermarket fuel level senders. The spacer/adapter plate is included with all Nuke Performance CFC Units when purchased, if lost you can order a replacement plate. You find a detailed mounting description in the CFC Unit product manual here.
5-bolt asymmetric adapter plate Part #: 150-10-117
Approved for all types of fuels, for all types of motorsports
Approved for petrol, methanol, and ethanol. Available in several different lengths, choose the size when placing an order. If ordered together with a fuel cell we will make sure that you get the right one delivered with your order.
Order the fuel level gauge without a fuel level sending unit
If you need a fuel level gauge and already purchased your sending unit, you can buy the gauge as an accessory if needed.
Fuel Gauge OHM Rating 0-90 Ohms Part # : 150-FLG-01
Download Product Manual (.pdf)
