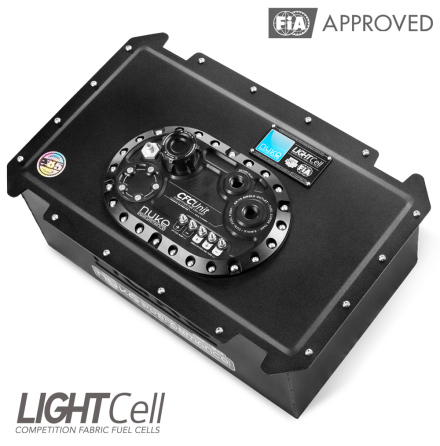

Pyrotect Elite Fuel Cell with the Nuke Performance CFC Unit

Partno: 150-06-08
Partno: 150-06-10
Partno: 150-06-12
Partno: 150-06-15
Partno: 150-06-17
Partno: 150-06-18
Partno: 150-06-22
Partno: 150-06-24
Partno: 150-06-26
Partno: 150-06-32

Price:

€ 2153,75
€ 2211,25
€ 2282,50
€ 2402,50
€ 2466,25
€ 2543,75
€ 2606,25
€ 2606,25
€ 2868,75
€ 2769,00
    Add ons:
Add Lift Fuel Pump
X
Add High Pressure Fuel Pump
X
Add Fuel Pump Mounting Kit
X

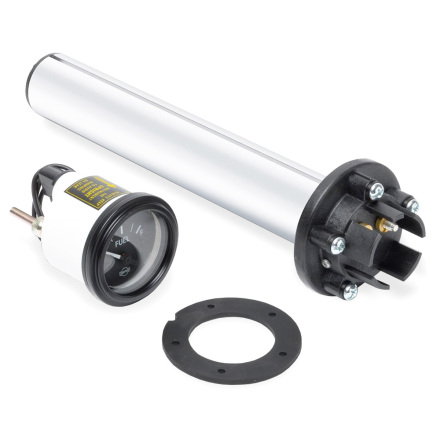

Add Fuel Level Sender Unit
X
Add outlet AN-10 ORB Fitting
X
Add return AN-8 ORB Fitting
X
Add Fuel Cell Vent Kit
X
  You can only make one selection per category.
Available sizes:

   FAST SHIPPING WORLDWIDE
   60-DAY SATISFACTION GUARANTEE
   SAFE AND SECURE
PAYMENT METHODS

Product information

Pyrotect PyroCell Elite fuel cells are lightweight FIA / FT3 Approved for all major racing and motorsports associations.
Ultra-durable double coated urethane fabric bladder delivered with the Nuke Performance CFC Unit - drop-in fuel pump hanger with integrated surge tank functionality. The most efficient and lightweight solution on the market, used by worldwide motorsports teams and safe for all alcoholic fuels such as ethanol.

 Extremely lightweight fuel cell
 FIA Approved for all types of motorsports
 Safe for all types of fuel, including alcoholic fuels
 Urethane fabric bladder, for motorsports use
 Available in several sizes, for your every need
 Integrated 2 liter Fuel Surge Tank function
 Fits single or dual high-pressure fuel pumps
 Low profile fuel filler cap with integrated roll-over valve
 AN-10 ORB single outlet / AN-8 ORB return

The high-quality PyroCell Elite fuel cells from Pyrotect is the top of the line fuel cells made out of ultra-durable double coated urethane fabric and with internal foam baffling and with the integrated CFC Unit from Nuke Performance, which eliminates the need for an external surge tank which is other needed when running a fuel cell, it is a perfect use for fuel injected systems. The fuel cell is safe for all types of fuels, including ethanol, and methanol.



 Integrated 2 liter surge tank, billet fuel pump hanger for 1-2 fuel pumps
The Pyrotect Elite Fuel Cell with the Nuke Performance CFC Unit comes delivered with the unique Nuke Performance Competition Fuel Cell Unit as a fill plate replacement. The CFC Unit is the perfect solution for a simplified high performing fuel system where safety is of uttermost importance. With the integrated drop-in surge tank, this setup eliminates the need for a space-consuming external surge tank. With all the needed fuel pumps mounted within the fabric fuel bladder itself, this is the only thing you need. This frees up space and weight and increases safety as fewer fuel line fittings are necessary and no external fuel pumps are used.



 Internal high-pressure fuel pumps, for any need between 200 - 2000hp
The Pyrotect Elite Fuel Cells are delivered with the unique Nuke Performance CFC Unit with an integrated Fuel Surge Tank and Fuel Pump Hanger function and fit a single or dual high-pressure fuel pump from Deatschwerks, AEM, Ti Automotive, Walbro, Bosch, Fuelab, Aeromotive, and many more. It fits all common 39mm fuel pumps as well as the larger Deatscherks DW400, Walbro GST400/450/520, Bosch BR540, and Aeromotive Stealth 450. One fuel pump is mounted within the fuel cell, mounted to a height-adjustable aluminum mount, and one or two fuel pumps mount to a billet aluminum mount within the surge tank. This solution is ready to deliver steady fuel flow for demands anywhere between 200-2000 horsepower without fuel starvation, even during demanding driving conditions thanks to the internal surge tank and the Pyrotect internal foam baffling.

The Pyrotect Elite Fuel Cell with the Nuke Performance CFC Unit fits most common fuel pumps. Together with the Nuke Performance fuel pump mounting kits, it has never been this easy to set up a high-performance fuel system.

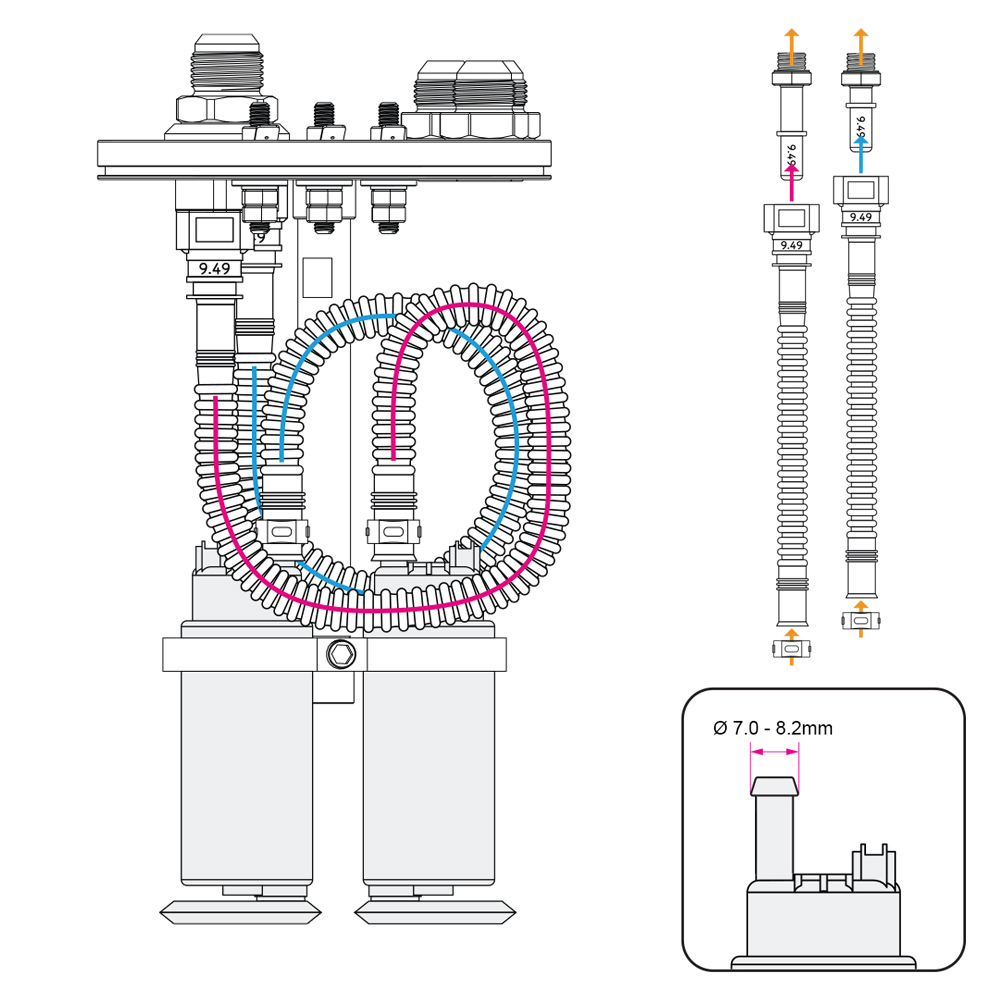

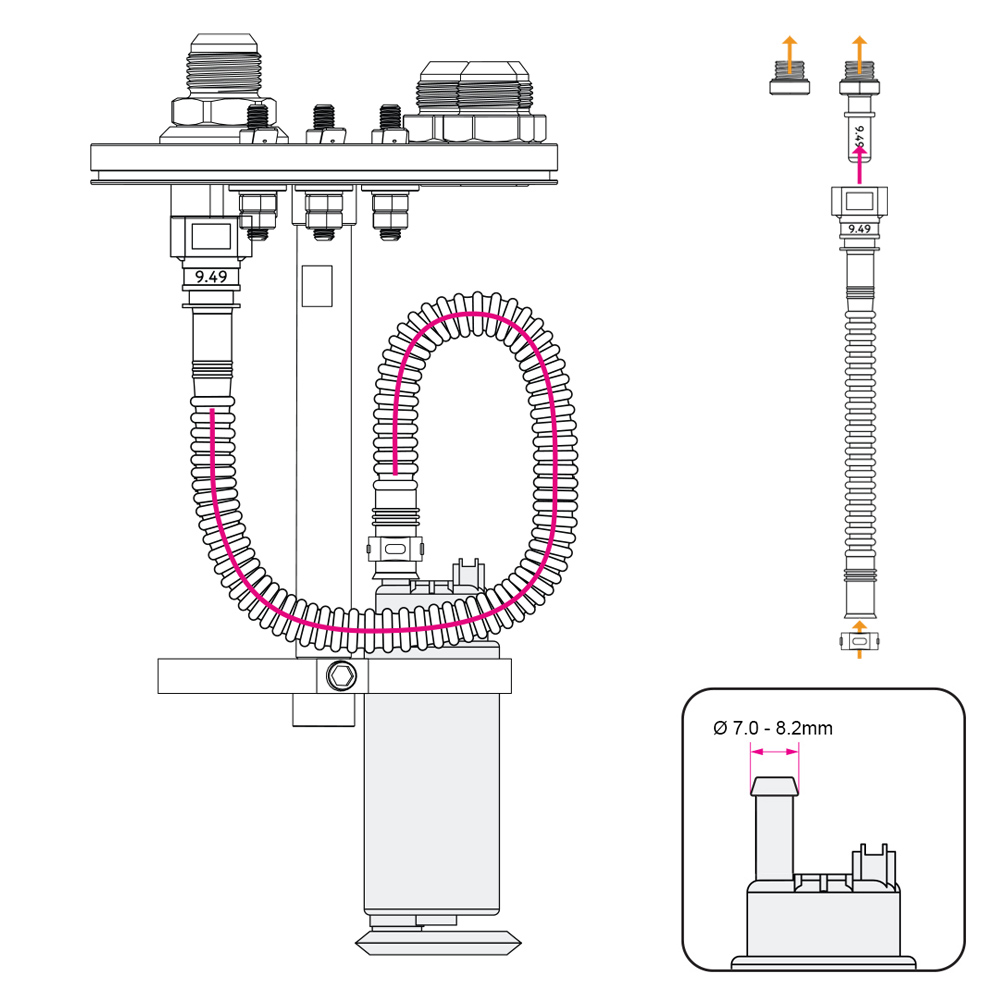

 How to mount fuel pumps within the Pyrotect Pyrocell Elite?
The single fuel pump mounted in the fuel bladder functions as a pickup fuel pump that ensures that the high-pressure fuel pumps within the oversized 2 liter (0.53 gallons) surge tank always have sufficient fuel to maximize fuel flow and minimize the risk of starvation that can seriously harm your engine. For more information, view the product manual. The CFC Unit is delivered with everything you need to install the fuel pumps of your selection, but we recommend adding one of our fuel pump mounting kits for optimal functionality. All fuel pumps are securely mounted in all conditions thanks to the billet fuel pump brackets.
 Fuel Pump Mounting Kits : Learn more about fuel pump setups
 Additional Fuel Pumps : Explore our selection of fuel pumps



 Our wide variety of fittings and fitment possibilities suits your every need for fuel delivery within an aftermarket fuel system
The Nuke Performance CFC Unit - Low profile Competition Fuel Cell Unit, with an integrated fuel surge tank, is now equipped with ORB threads. The AN-10 ORB outlet port and the AN-8 ORB return port lets you choose from a wide range of different available ORB fittings. The use of the oversized, high flow AN-10 ORB outlet combines the internal fuel pumps into one single fuel line and minimizes the need for external equipment, hoses, and fittings. The included rollover protected vent fitting is of AN-6 (3/4 UNF) and can be swapped for AN-6 to AN-10 when needed. Outlet and return AN-6, AN-8, AN-10, and AN-12 fittings are sold separately as accessories.
 Outlet fittings :
AN-10 ORB to AN-6 Male Part # : 700-04-108
AN-10 ORB to AN-8 Male Part # : 700-04-109
AN-10 ORB to AN-10 Male Part # : 700-04-110
AN-10 ORB to AN-12 Male Part # : 700-04-111
 Return fittings :
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-12 Male Part # : 700-04-107



 NEW : The Fuel Cell Vent Kit AN-6 fits straight to the vent valve of the CFC Unit for easy installation
The CFC Unit is equipped with a roll-over protected AN-8 (3/4 UNF) to AN-6 Male vent fitting, and the easiest way to route the vent line into a safe and functional position is to accommodate a fuel cell vent kit from Nuke Performance. Available in several sizes, from AN-6 to AN-12, you can choose the kit that suits your needs the best. If you want to use a larger vent line than AN-6, you also need to swap the fitting on the vent valve, view the assortment here. The vent kit is delivered with a 1m (3.3ft) nitrile fuel hose and a universal air filter that prevents debris to get into your fuel system.
Fuel Cell Vent Valve AN-6 Part # : 150-22-206
AN-8 (3/4 UNF) to Male Adapters : View assortment



 Full foam baffling and durable double coated fabric bladder
The American-made Pyrotect Elite fuel cells come with modified internal foam baffling from the fabrication line, modified to the needs of mounting the Nuke Performance CFC Unit. The durable urethane bladder, wrapped in a lightweight aluminum housing, is much safer than simpler solutions such as saver cells and welded aluminum cells. The Pyrotect Elite series are among the safest fuel cells on the market today and developed from a long history of professional motorsports. Equipped with Ultra Durable Double Coated Urethane Fabric Bladder and aluminum container, it is available in several different sizes, from 8 to 26 gallons (30 to 98 liters). And with the Nuke Performance CFC Unit, the only thing you need between the fuel cell and the engine is a fuel filter, just as in a stock fuel setup. The internal bladder is fully safe for all types of fuels, but if being used with alcoholic fuel it should not be left for a long time storage without being rinsed with non-alcoholic fuel first.



 Developed, designed, and manufactured in Sweden
The Pyrotect Elite Fuel Cell with the Nuke Performance CFC Unit is delivered in a perfect combination with the modern bladder type fuel cell from Pyrotect and the unique CFC Unit from Nuke Performance that is developed, designed, and manufactured in Sweden and with the highest possible quality with the same hallmark as the other parts in the lightweight Nuke Performance motorsports range. There is no substitute for the quality of Nuke Performance!



 Manufactured to order, delivery time approx 3 weeks
All Pyrotect fuel cells are manufactured to order, this makes it possible to guarantee the current FIA approval and prevents you get your hands on an old and stored bladder. Delivery time is around 3 weeks after the order is placed.

The Nuke Performance and Pyrotect fuel cells are an official and international collaboration between the two manufacturers. The fuel cells from Pyrotect that are made specifically for the CFC Unit have been branded with both brands. If you order a fuel cell directly from Pyrotect, make sure to tell them that it is meant to be used with the Nuke Performance CFC Unit.


 Pyrotect Elite Fuel Cell Specifications
For more information about CFC Unit specifications, view the product manual.

 8 gallon fuel cell Part #  150-06-08
 Length 527mm (20.75”)
 Depth 308mm (12.12”)
 Height 219mm (8.62”)
 Weight N/A, including CFC Unit
 Fuel capacity 30,28 liter (8 gallons)
 Fuel level sender 150-FLS-08 203 mm / 8"

 10 gallon fuel cell Part # 150-06-10
 Length 620mm (25.62”)
 Depth 257mm (10.12”)
 Height 257mm (10.12”)
 Weight N/A, including CFC Unit
 Fuel capacity 37,85 liter (10 gallons)
 Fuel level sender 150-FLS-09 228 mm / 9"

 12 gallon fuel cell Part # 150-06-12
 Length 502mm (19.76”)
 Depth 437mm (17.20”)
 Height 234mm (9.21”)
 Weight N/A, including CFC Unit
 Fuel capacity 45,42 liter (12 gallons)
 Fuel level sender 150-FLS-09 228 mm / 9"

 15 gallon fuel cell Part # 150-06-15
 Length 622mm (24.5”)
 Depth 450mm (17.75”)
 Height 241mm (9.5”)
 Weight N/A, including CFC Unit
 Fuel capacity 56,78 liter (15 gallons)
 Fuel level sender 150-FLS-09 228 mm / 9"

 17 / 18 / 22 / 24 / 26 / 32 gallon Dimensions found under specification...



 Nuke Performance CFC Unit Specifications
For more information about specifications, view the product manual.

 CFC Unit Part # 150-05-201
 Minimum mounting depth 219mm (8.62")
 Mounting bolt pattern 6x10" 24-bolt pattern
 High-pressure fuel pump connector x 3 (max 125 ampere / each *)
 - Connector points 6 mm bolt connectors
 Pickup fuel pump connector x 2 (max 125 ampere / each *)
 - Connector points 6 mm bolt connectors
 Length 295mm (13.74")
 Width 194mm (9.88")
 Weight 1934g (68.21oz)
 Maximum pickup pipe length 90mm (3.54") / 95mm (3.74")
 Fits number of lift fuel pumps 1 x brushed fuel pump
 Fits number of high-pressure pumps 1-2 x brushed fuel pump
 Fuel compatibility Gasoline, Methanol, Ethanol, E85
 Fits additional venturi lift kit NO
 Internal surge tank volume Approximately 2.0 liter (0.53 gallons)
 Outlet port, thread AN-10 ORB, view assortment **
 Return port, thread AN-8 ORB, view assortment **
 Vent valve, thread AN-8 (3/4 UNF), view assortment
 For motorsports use YES

 * for reference only
** changed specification 2022

 Pyrotect Elite Fuel Cell with CFC Unit includes:
1 x Pyrotect Elite fuel cell with aluminum container
1 x Nuke Performance CFC Unit - low profile version
2 x 1/4" BSPP to Male barb 8mm hose fittings
1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
2 x 39mm inserts for high-pressure fuel pump bracket
1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x Low profile filler cap (remote fill neck available as accessory)
1 x Dual billet fuel pump bracket and adjustable pickup pump mount
1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
24 x 1/4-28 UNF x 1 bolts with nylon washers

 Download User Manual (.pdf)
