In-tank fuel pump mounting kit, quick connect and E85 proof

Nuke Performance SAE in-tank fuel pump mounting kits, specially designed for Nuke Performance CFC Units and Fuel Surge Tanks. Safe for all types of fuel.

Safe for all types of fuels, including ethanol, and ideal for motorsports with quick-connect fittings for easy maintenance and long-lasting durability. These in-tank fuel hose kits meet motorsports standards and are suitable for quick, safe, and sturdy mounting of your high-pressure in-tank fuel pumps from Aeromotive, AEM, Deatschwerks, Ti Automotive, Walbro, and more.

 Lightweight and extremely durable
 Safe for all types of fuels, including E85
 Easy maintenance with quick-connect fittings
 Quick and easy installation
 A high-pressure system with minimal flow loss
 For single, dual, or triple internal fuel pumps

Available for single, dual, or triple in-tank fuel pump setups. Suits fuel pumps with 7.5 - 10mm outlet diameter. Find your fuel pump in the list below and choose the correct size when placing an order.

 Fuel pump Mounting Kit Ø 7 - 8.2mm, ID8 (5/16) :
• AEM 320LPH / 340LPH (50-1000, 50-1200, 50-1300)
• AEM 400LPH #50-1235
• Ti Automotive (Walbro) GSS340
• Ti Automotive (Walbro) GSS341
• Ti Automotive (Walbro) GSS342
• Deatschwerks DW200
• Deatschwerks DW300
• Deatschwerks DW420
• Deatschwerks DW810 Brushless (both Ø8 / Ø10mm fittings included)
• Most fuel pumps with a maximum outlet Ø of 8.1mm

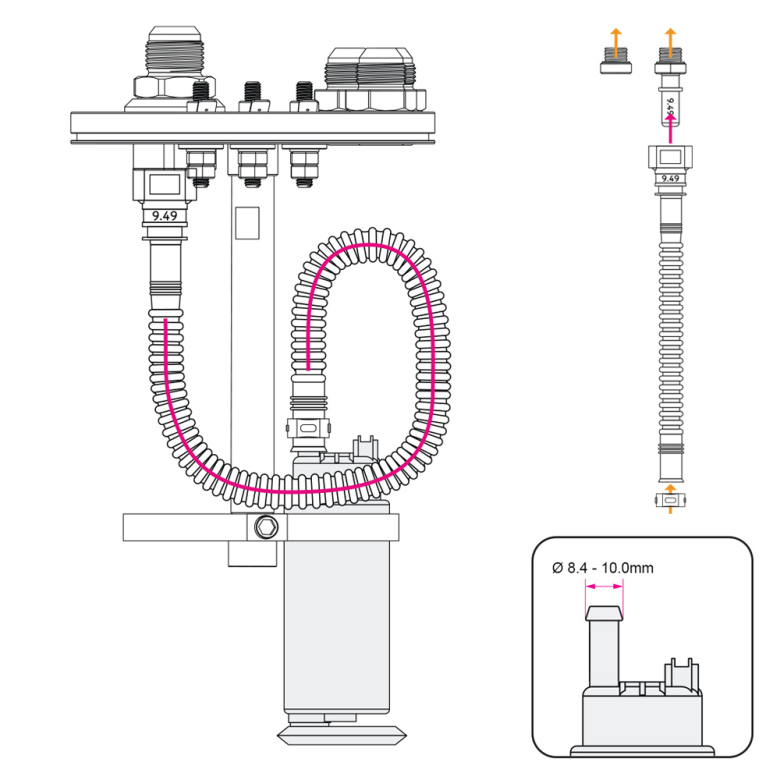

 Fuel pump Mounting Kit Ø 8.4 - 10mm, ID10 (3/8) :
• Aeromotive Stealth 325
• Aeromotive Stealth 340
• Aeromotive Stealth 450
• AEM 400LPH #50-1230
• Bosch BR540
• Deatschwerks DW400
• Deatschwerks DW550
• Deatschwerks DW620R
• Deatschwerks DW440 Brushless
• Deatschwerks DW810 Brushless (both Ø8 / Ø10mm fittings included)
• Ti Automotive (Walbro) GST400
• Ti Automotive (Walbro) GST450
• Ti Automotive (Walbro) GST520
• Ti Automotive (Walbro) GST525
• Most fuel pumps with a maximum outlet Ø of 10.2mm (3/8)

This list highlights only our most common fuel pump applications. If you have questions or need guidance for any other pump not shown here, feel free to contact us for a consultation.

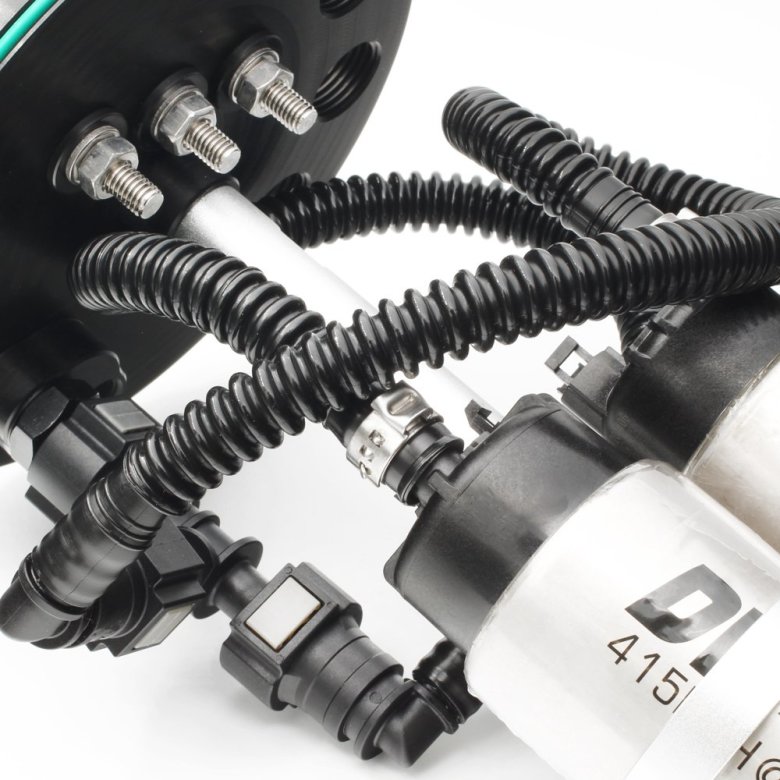

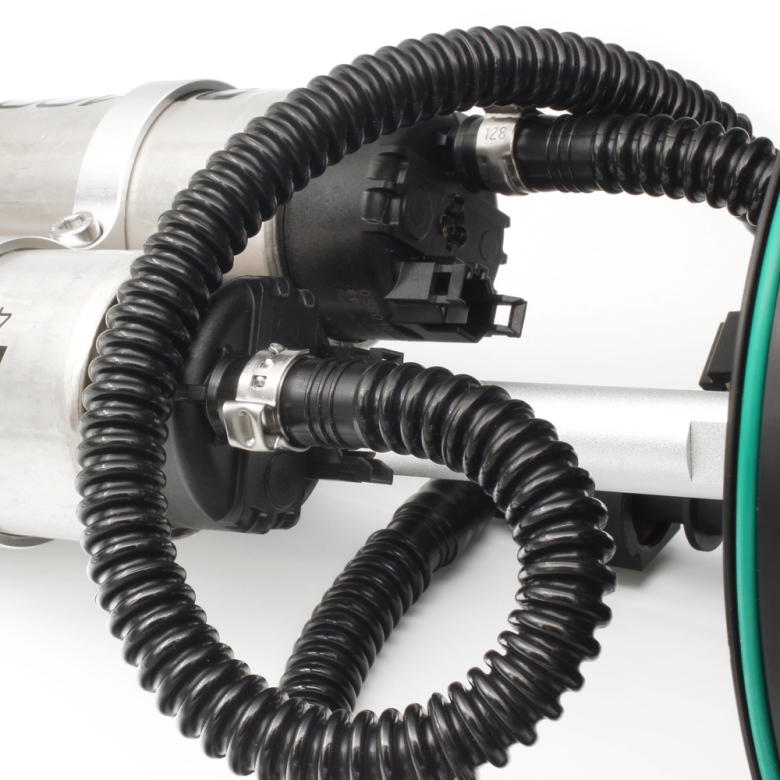

 Convoluted nylon fuel hose for high flow and long durability
With the in-tank convoluted black nylon fuel hose, you will never have to worry again about how the fuel hoses will handle being soaked in fuel during long and demanding seasons, or even if left in fuel when not being used for a long time. It fits within tight installations such as the Nuke Performance CFC Units and the Nuke Performance Fuel Surge Tanks.

 SAE quick-connect fittings for all types of fuels and easy maintenance
The in-tank fuel pump kits utilize high-flow SAE quick-connect fittings with Viton O-rings. SAE J2044 standard fittings for high flow and maximal functionality, and durability. Safe for all fuels, including alcoholic fuels such as ethanol. These fittings make your maintenance quick and safe with minimal tooling and effort.

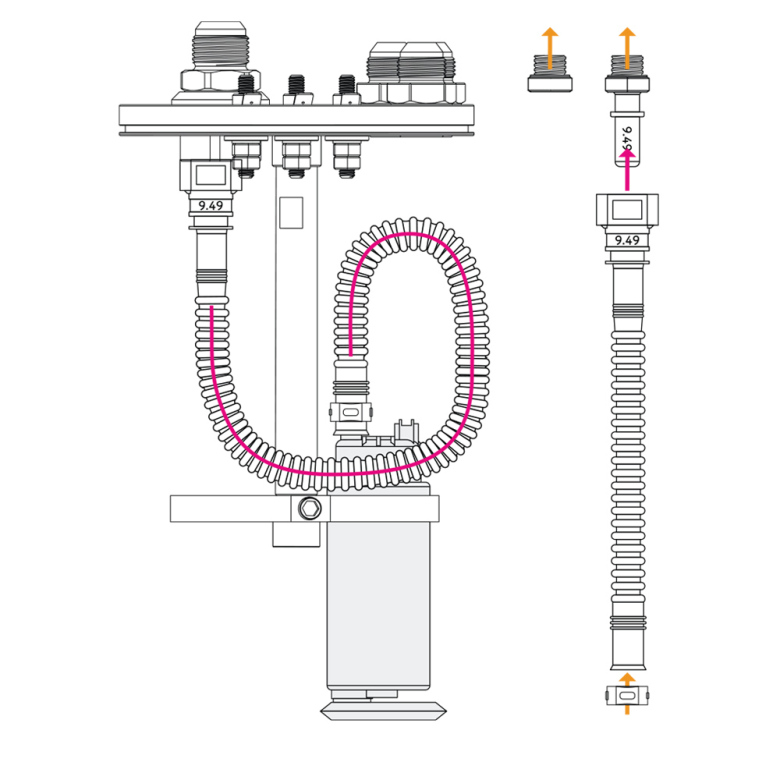

 Delivered with everything you need for an easy installation
The Nuke Performance in-tank fuel pump mounting kit comes with all the fittings, hoses, and accessories you need for an easy and simple installation. For more information, download the product manual and learn more about each setup. This is the easiest way to install fuel pumps within the Nuke Performance CFC Unit and Fuel Surge Tanks, and is not developed to be used in other applications except the Nuke Performance fuel performance products.

 Download User Manual (.pdf)

 In-tank fuel pump mounting kit Specifications:
For more information about specifications, view the product manual.

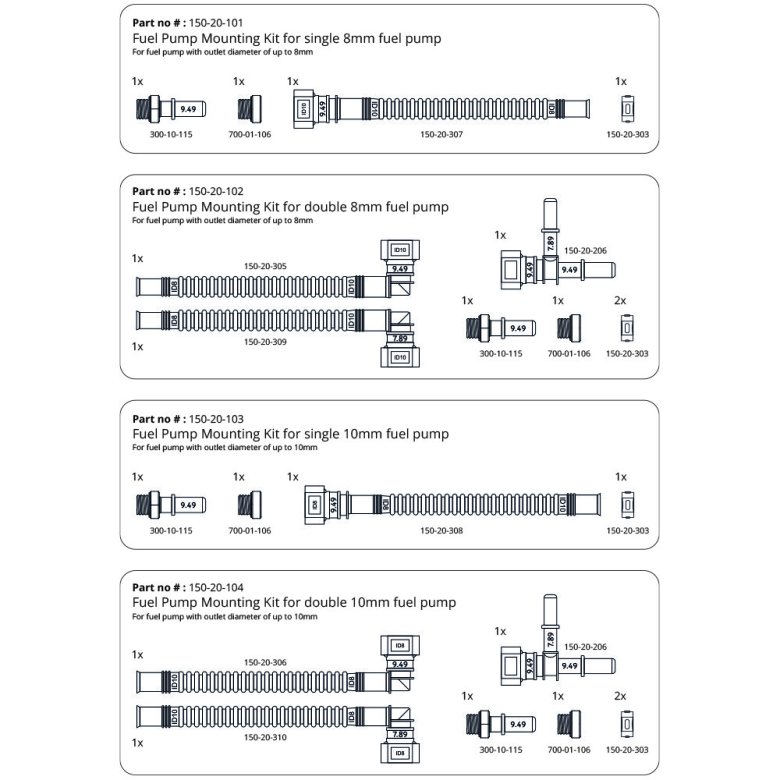

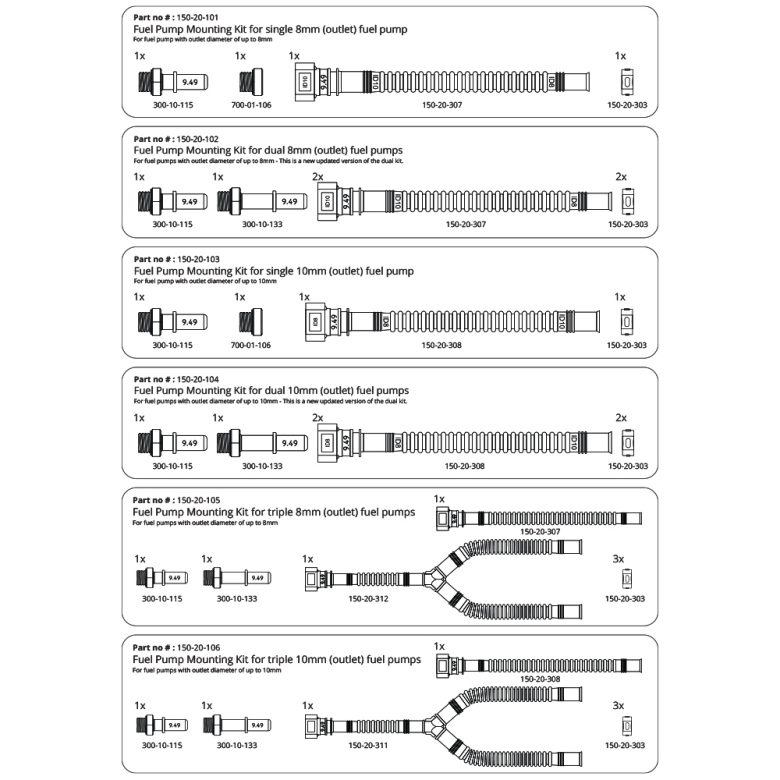

 Single fuel pump kit includes: (150-20-101, 150-20-103)
1 x 1/4 BSPP to SAE 9.49 Male fitting
1 x 1/4 BSPP Plug
1 x Convoluted 350mm fuel hose, preassembled with SAE fitting
1 x Single ear hose clamp

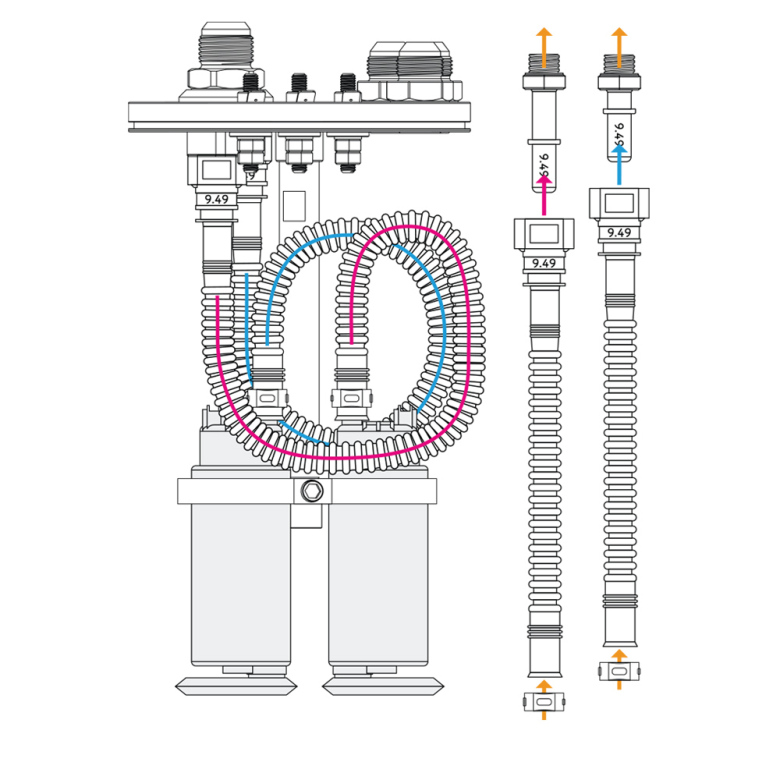

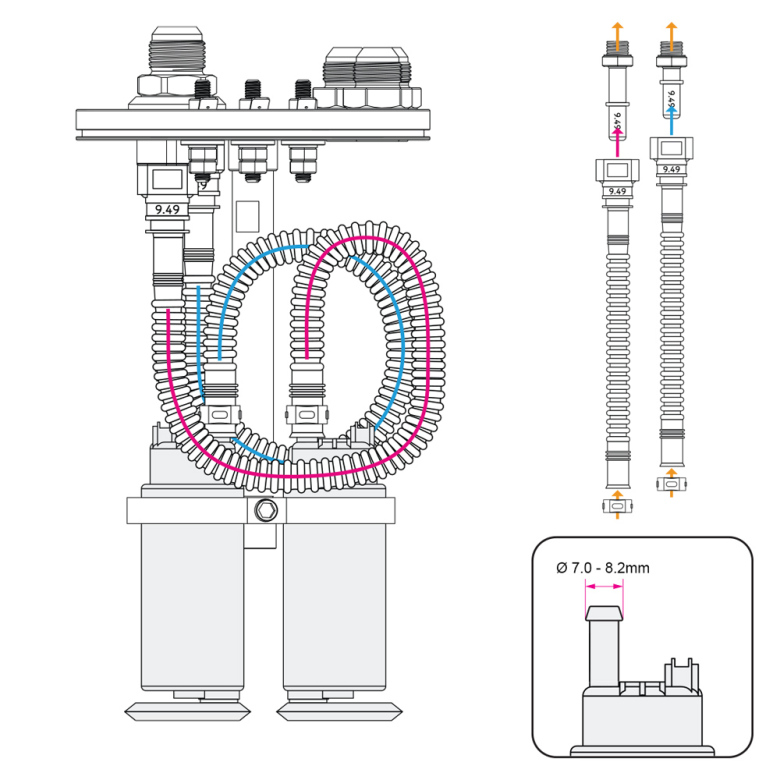

 Dual fuel pump kit includes: * (150-20-102, 150-20-104)
1 x 1/4 BSPP to SAE 9.49 Male fitting, short
1 x 1/4 BSPP to SAE 9.49 Male fitting, long
2 x Convoluted 350mm fuel hose, preassembled with SAE fitting
2 x Single ear hose clamp

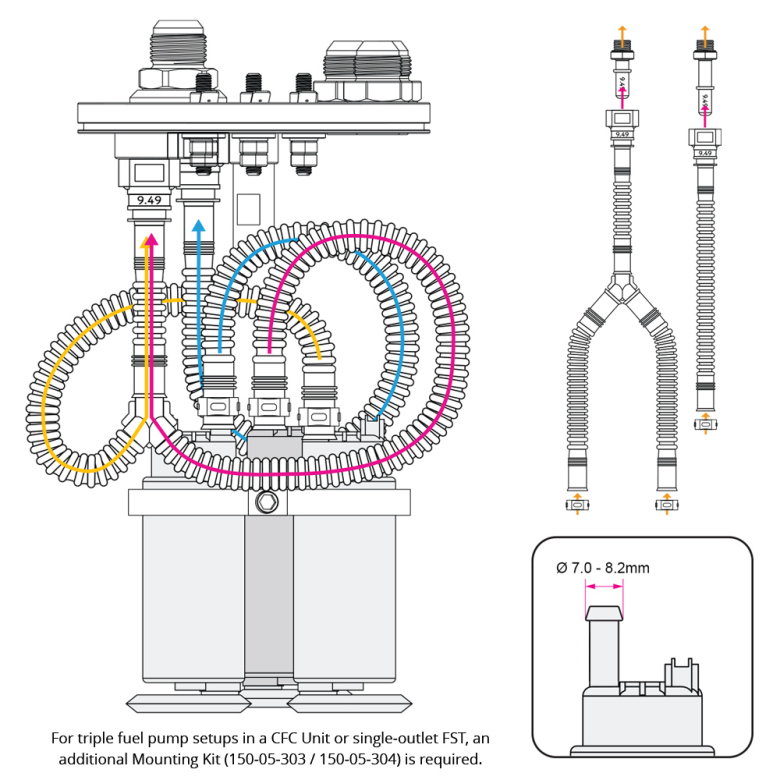

 Triple fuel pump kit includes: ** (150-20-105, 150-20-106)
1 x 1/4 BSPP to SAE 9.49 Male fitting, short
1 x 1/4 BSPP to SAE 9.49 Male fitting, long
1 x Convoluted 350mm fuel hose, preassembled with SAE fitting
1 x Convoluted 350mm fuel hose, Y-split design preassembled with SAE fitting
3 x Single ear hose clamp

 Download User Manual (.pdf)
 Additional in-tank fuel pumps

 * Product update 2024 :
A new revised version of the dual kits (150-20-102 / 150-20-104) replaces the old version during Q2 of 2024. The new kit doesn´t use the T fitting used on the first generation of installation kits. To view the first-generation installation manual, click here to download (.pdf).

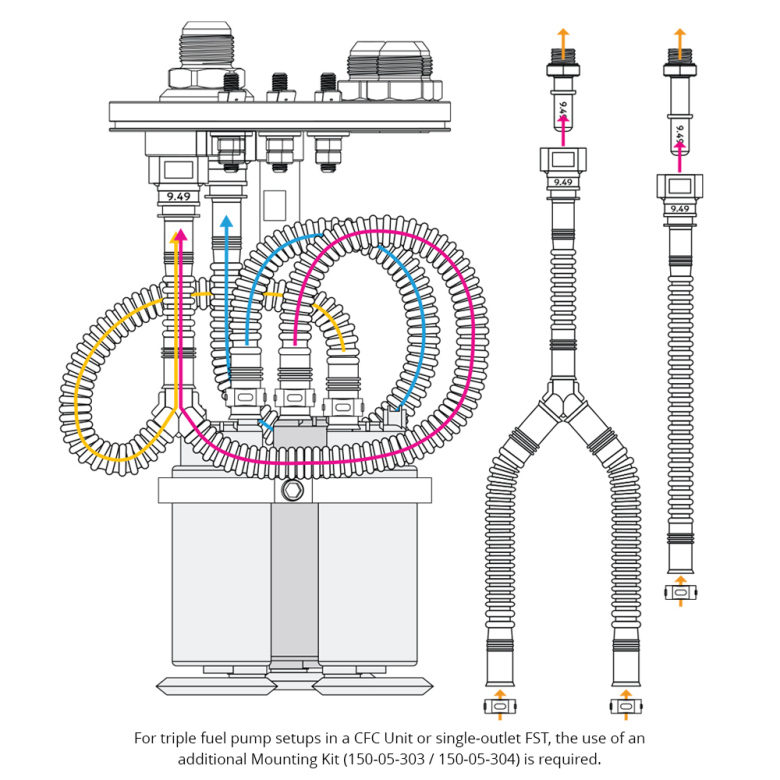

 ** Triple fuel pump kit - Released 2026 :
To install and run triple high-pressure fuel pumps in a Nuke Performance CFC Unit or a single-outlet Fuel Surge Tank, the additional Triple Fuel Pump Mounting Kits, part numbers #150-05-303 and #150-05-304, are also required (available here).
