Fuel Filler Hose Kit, Translucent

Nuke Performance translucent PTFE fuel filler hose for professional motorsports and remote fuel filler installations, available in 30, 60, and 90 cm lengths. Perfect match for our CFC Units, Quick Lock Filler Caps, and Dry Break Filler Systems.

The Nuke Performance Translucent Fuel Filler Hose combines fuel visibility, exceptional flexibility, and full alcohol fuel compatibility in a premium 100% PTFE hose. See the fuel rise during refueling and know when to stop before overfilling. Exceptionally flexible and fully compatible with E85, ethanol, methanol, and other demanding motorsports fuels.

 Translucent design helps prevent fuel overfilling
 Exceptional flexibility with a tight bending radius
 100% PTFE construction for maximum fuel compatibility
 E85 compatible without discoloration or deterioration
 Choose between 30, 60, and 90 cm (1, 2, 3 ft) lengths

This is not a conventional fuel filler hose. Traditional convoluted hoses offer flexibility but no fuel visibility, while clear hoses provide visibility at the expense of flexibility and long-term alcohol fuel compatibility. The Nuke Performance 100% PTFE construction combines the advantages of both – fuel visibility, exceptional flexibility, and long-term fuel compatibility in one purpose-built motorsports hose. No compromise between visibility, flexibility, and fuel compatibility – you get all three.

 Made from 100% PTFE for E85 and alcohol-based fuels, without discoloration or brittleness.
Unlike conventional clear fuel hoses, the Nuke Performance Translucent Fuel Filler Hose is manufactured entirely from PTFE. Its PTFE construction provides excellent resistance to petrol, gasoline, ethanol, E85, E100, methanol, race fuel, and diesel without the discoloration, hardening, or brittleness commonly associated with clear hoses when exposed to alcohol-based fuels.

 For long-term E85 use without becoming brittle or discolored
 Exceptional flexibility and tight bending radius

For E85, ethanol, and other demanding motorsports fuels, this provides the long-term fuel compatibility expected from a professional fuel system while retaining the advantage of being able to see the fuel through the hose. Despite being manufactured entirely from PTFE, the Nuke Performance hose offers exceptional flexibility and a tight bending radius comparable to our popular black Fuel Filler Hose (available here).

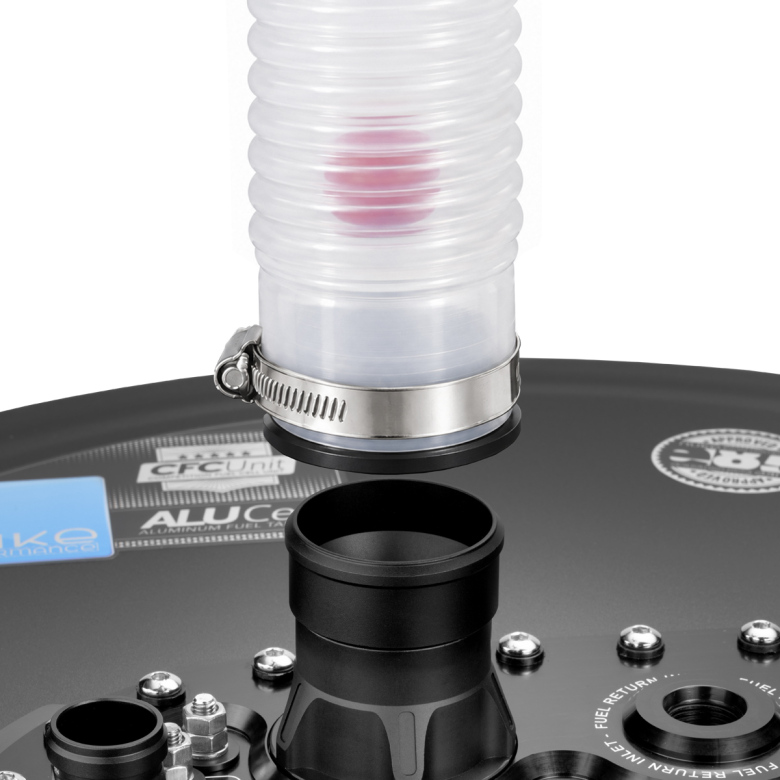

 See when the fuel cell is full and help prevent overfilling with an included PTFE fuel indicator for even clearer indication.

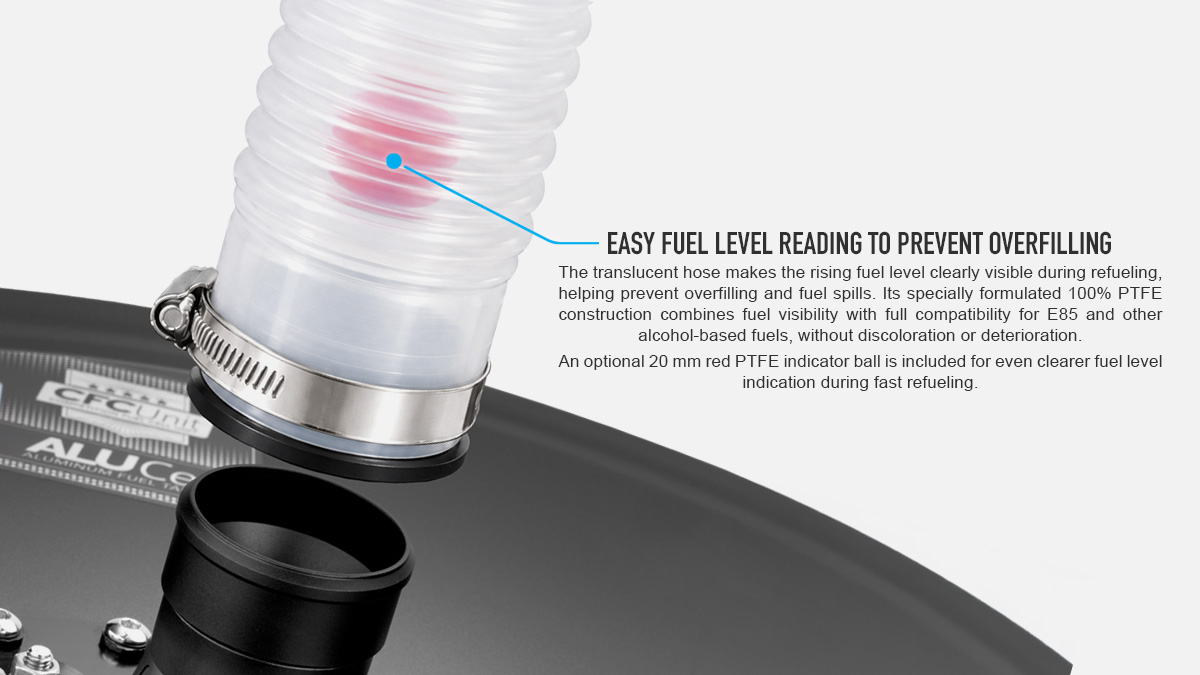

The translucent hose makes the rising fuel level clearly visible during refueling, helping the operator stop before overfilling the fuel cell and spilling fuel. Each hose includes a 20 mm red PTFE indicator ball that can be placed inside the hose for an even clearer indication during fast refueling. Its high buoyancy makes it rise with the fuel, while its small diameter has minimal effect on fuel flow. The indicator is optional, as the fuel level remains visible through the translucent hose.

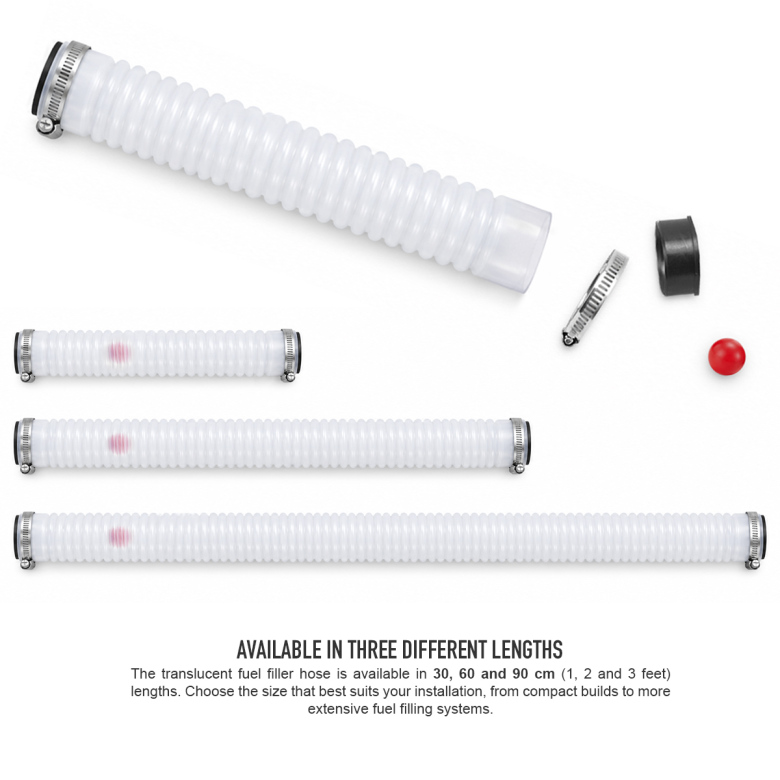

Available in 30, 60, and 90 cm lengths (1, 2, and 3 feet).
The specialized manufacturing process required to achieve the combination of PTFE construction, translucency, and exceptional flexibility does not allow the hose to be satisfactorily shortened and resealed after production. The hose is therefore manufactured in three ready-to-install lengths:

Fuel Filler Hose Kit, Translucent 30cm (1 foot) Part # : 150-31-205
Fuel Filler Hose Kit, Translucent 60cm (2 feet) Part # : 150-31-206
Fuel Filler Hose Kit, Translucent 90cm (3 feet) Part # : 150-31-207

Make sure to choose the length that best suits your installation needs.

Designed and developed in Sweden, the complete 50 mm (2") fuel filler hose kit is made for demanding motorsports fuel systems.

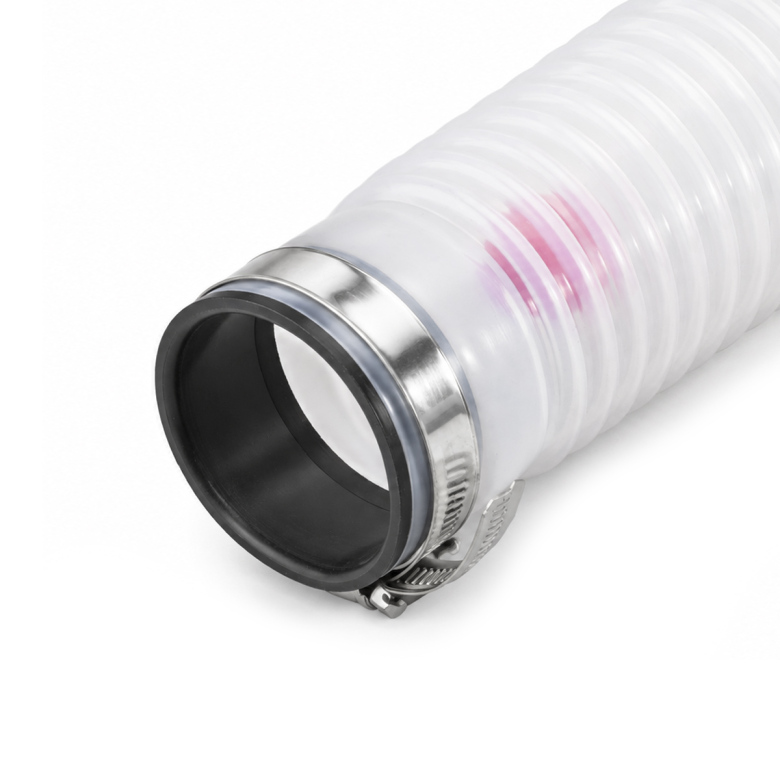

Each kit is supplied with connection sleeves for both ends and stainless steel hose clamps for a secure and durable installation. The 50 mm (2") connection standard makes the Translucent Fuel Filler Hose an ideal match for Nuke Performance CFC Units, Quick Lock Filler Caps, and Dry Break Filler Systems.

Developed for professional motorsports but equally suitable for demanding performance builds, it is the premium choice for installations where fuel visibility, exceptional flexibility, and long-term fuel compatibility are equally important.

There is no substitute for the quality of Nuke Performance.

 Fuel Filler Hose Kit, Translucent Specifications:
For more information about specifications, view the product manual.

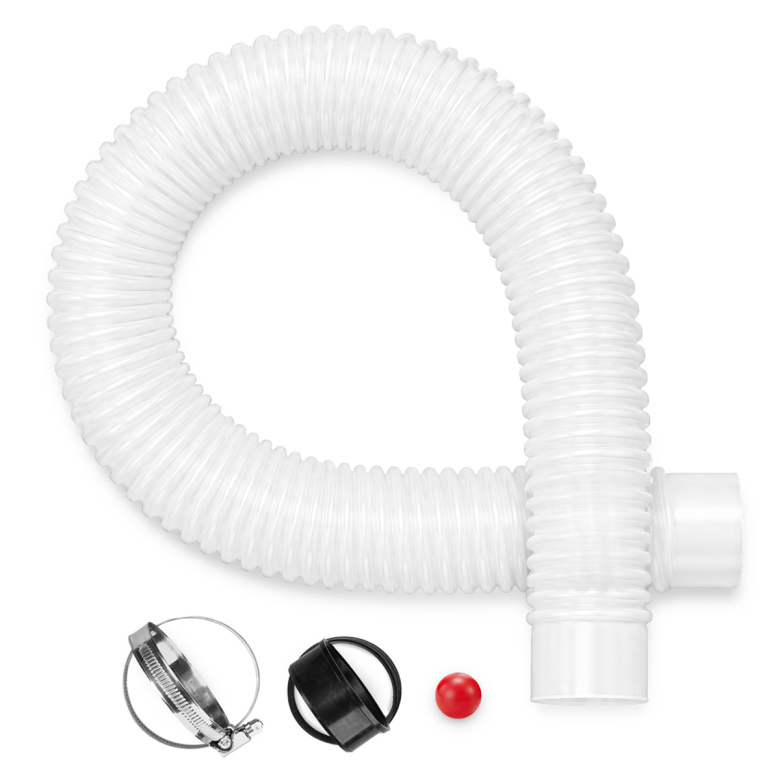

 Nuke Performance Fuel Filler Hose Kit, Translucent includes:
1 x PTFE corrugated fuel filler hose of selected length
2 x Viton bushings with an internal diameter of 50mm (2")
2 x Stainless steel hose clamps
1 x Red PTFE indicator ball, 20mm outer diameter

 Download Product Manual (.pdf)
 Accessories / Spare Parts
