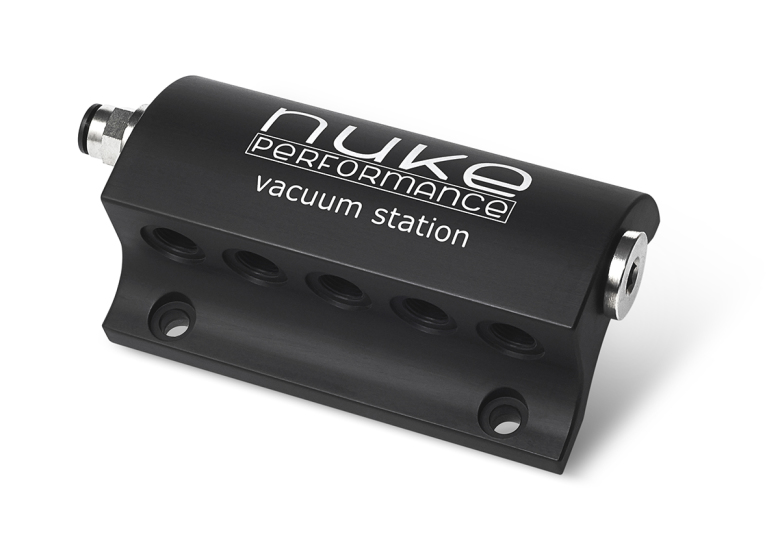

Vacuum Station 5 outlets

Partno: 600-01-201

Price:

€ 86,25
    Add ons:

   FAST SHIPPING WORLDWIDE
   60 DAY SATISFACTION GUARANTEE
   SAFE AND SECURE
PAYMENT METHODS

Product information

The Nuke Performance Vacuum Station / Vacuum Manifold is the easiest way to eliminate too many vacuum hoses in the engine bay. Combine all your parts with the need for a vacuum reading into one line connected to the manifold.

The classic Nuke Performance Vacuum Station 5 outlets with integrated mounting points for an easy and safe installation. 2 x 1/4" BSPP inlet and 5x 1/8" BSPP outlets give you a versatile selection to choose from.

 Integrated mounting points for safe installation
 2x 1/4" BSPP inlet ports
 5x 1/8" BSPP outlet ports
 Lets you use only one line to your intake manifold
 Cleans up your engine bay

Connects all your engine parts that need a vacuum reading with one single line/hose to your intake. With the versatile vacuum station from Nuke Performance, it has never been easier to clean up your engine bay from additional hoses and tubes. Connect a single vacuum line / vacuum hose to the intake and use the 5 ports of the Vacuum Station 5 outlets from Nuke Performance to connect to all the parts that need a vacuum reading such as your fuel pressure regulator, blow-off valve, wastegate, fuel pulse damper, and ECU.

 Delivered with a 1/4 BSPP quick connect to 6mm vacuum line fitting and a 1/4 BSPP plug, for the five outlets you get to choose from a large variety of fittings.
The Vacuum Station 5 outlets from Nuke Performance is delivered with a 1/4 quick connect to 6mm hard line fitting, the oversized dimension gives you a proper reading that is sufficient to divide for the additional 5 outlets. It is also delivered with a 1/4 plug for the other end, in total the vacuum station has 7 threaded outlets/inlets, additional 1/4 and 1/8 fittings is available as accessories and available in a wide variation of version and sizes.
Main inlet port 1/4 BSPP fittings:
1/4 BSPP Barb Fitting to 4mm hose Part #: 300-10-113
1/4 BSPP Barb Fitting to 6mm hose Part #: 300-10-111
1/4 BSPP Barb Fitting to 8mm hose Part #: 300-10-110
1/4 BSPP Pneufit Quick Connect to 6mm tubing Part #: 300-10-103
1/4 BSPP Pneufit Banjo Quick Connect to 6mm tubing Part #: 300-10-119
1/4 BSPP Pneufit Banjo Quick Connect to 8mm tubing Part #: 590-10-104
1/4 BSPP Plug Part #: 700-01-106

Outlet port 1/8 BSPP fittings:
1/8 BSPP Barb Fitting to 4mm hose Part #: 300-10-120
1/8 BSPP Pneufit Quick Connect to 6mm tubing Part #: 300-10-101
1/8 BSPP Plug Part #: 700-01-107

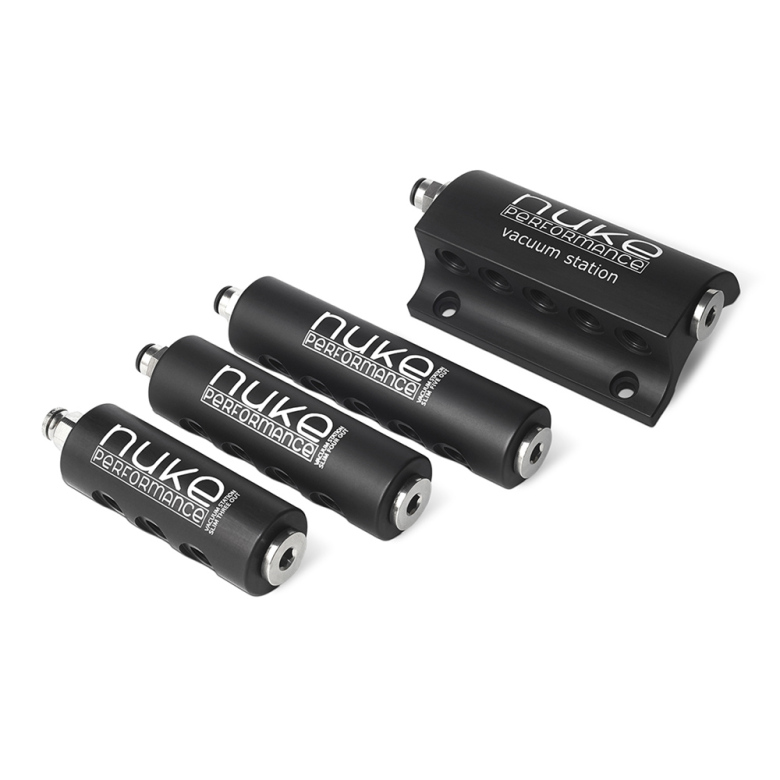

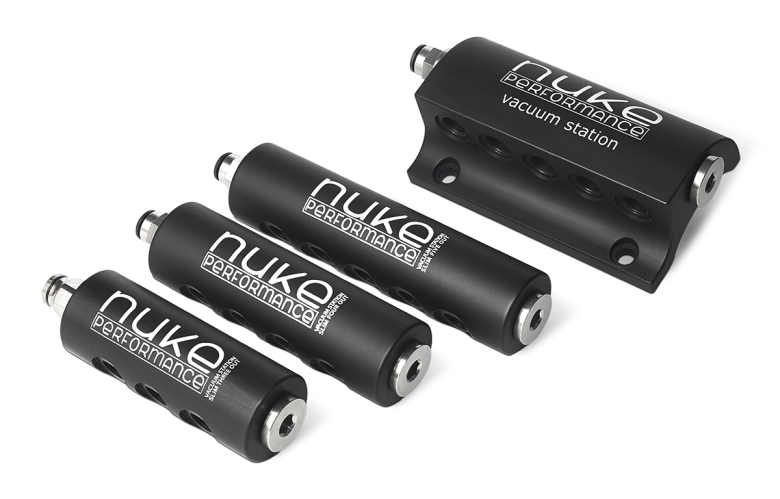

 The Vacuum Station is also available in a slim line lineup with 3 / 4 / 5 outlet ports.
Nuke Performance also offers a lineup of their Slim series, vacuum stations in a slim design with either 3, 4, or 5 outlets. Perfect for tight engine bays, where space can be an issue. Same functionality as the classic vacuum station but in a space-efficient design.


 Vacuum Station 5 outlets specifications :
For more information about specifications, contact us directly.

 Part number 600-01-201
 EAN 7340209501865
 Inlet thread 2 x 1/4 BSPP
 Outlet thread 5 x 1/8 BSPP
 Integrated brackets YES
 Length 119 mm (4.68") *
 Height 60 mm (2.36")
 Depth 35 mm (1.38")
 Weight 303 g (0.67lb) *
 For motorsports use YES

 * Measurements including the supplied fittings

 Nuke Performance Vacuum Station 5 outlets includes :
1 x Vacuum station manifold
1 x 1/4 BSPP Quick Connect to 6mm line
1 x 1/4 BSPP Plug

 Download Product Sheet (.pdf)
