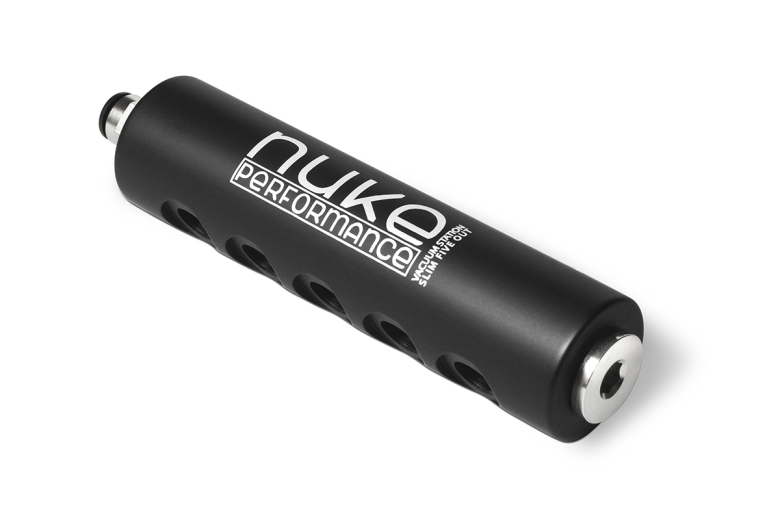

Vacuum Station Slim 5 outlets

Partno: 600-01-204

Price:

€ 68,75
    Add ons:

   FAST SHIPPING WORLDWIDE
   60-DAY SATISFACTION GUARANTEE
   SAFE AND SECURE
PAYMENT METHODS

Product information

The Nuke Performance Vacuum Station Slim 5 outlets / Vacuum Manifold is the easiest way to eliminate too many vacuum hoses in the engine bay.

The slim series Nuke Performance Vacuum Station Slim 5 outlets combine all your parts with the need for a vacuum reading into one line to the manifold. 2 x 1/4" BSPP inlet and 5x 1/8" BSPP outlets give you a versatile selection to choose from.

 Slim and lightweight motorsports design
 2x 1/4" BSPP inlet ports
 5x 1/8" BSPP outlet ports
 Lets you use only one line to your intake manifold
 Cleans up your engine bay

Connects all your engine parts that need a vacuum reading with one single line/hose to your intake. With the versatile vacuum station from Nuke Performance, it has never been easier to clean up your engine bay from additional hoses and tubes. Connect a single vacuum line / vacuum hose to the intake and use the 5 ports of the Vacuum Station Slim 5 outlets from Nuke Performance to connect to all the parts that need a vacuum reading such as your fuel pressure regulator, blow-off valve, wastegate, fuel pulse damper, and ECU.

 Delivered with a 1/4 BSPP quick connect to 6mm vacuum line fitting and a 1/4 BSPP plug, for the five outlets you get to choose from a large variety of fittings.
The Vacuum Station Slim 5 outlets from Nuke Performance is delivered with a 1/4 quick connect to 6mm hard line fitting, the oversized dimension gives you a proper reading that is sufficient to divide for the additional 5 outlets. It is also delivered with a 1/4 plug for the other end, in total the vacuum station has 7 threaded outlets/inlets, additional 1/4 and 1/8 fittings is available as accessories and available in a wide variation of version and sizes.
Main inlet port 1/4 BSPP fittings:
1/4 BSPP Barb Fitting to 4mm hose Part #: 300-10-113
1/4 BSPP Barb Fitting to 6mm hose Part #: 300-10-111
1/4 BSPP Barb Fitting to 8mm hose Part #: 300-10-110
1/4 BSPP Pneufit Quick Connect to 6mm tubing Part #: 300-10-103
1/4 BSPP Pneufit Banjo Quick Connect to 6mm tubing Part #: 300-10-119
1/4 BSPP Pneufit Banjo Quick Connect to 8mm tubing Part #: 590-10-104
1/4 BSPP Plug Part #: 700-01-106

Outlet port 1/8 BSPP fittings:
1/8 BSPP Barb Fitting to 4mm hose Part #: 300-10-120
1/8 BSPP Pneufit Quick Connect to 6mm tubing Part #: 300-10-101
1/8 BSPP Plug Part #: 700-01-107

 The Vacuum Station is also available in an extruded version with 5 outlet ports and integrated brackets.

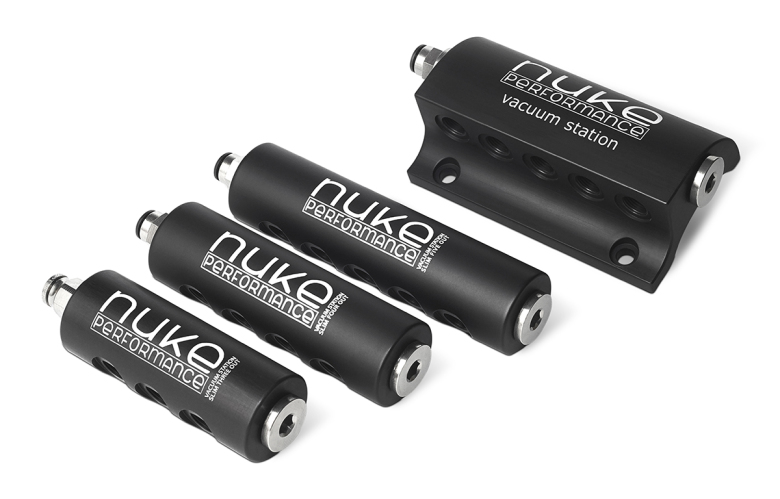

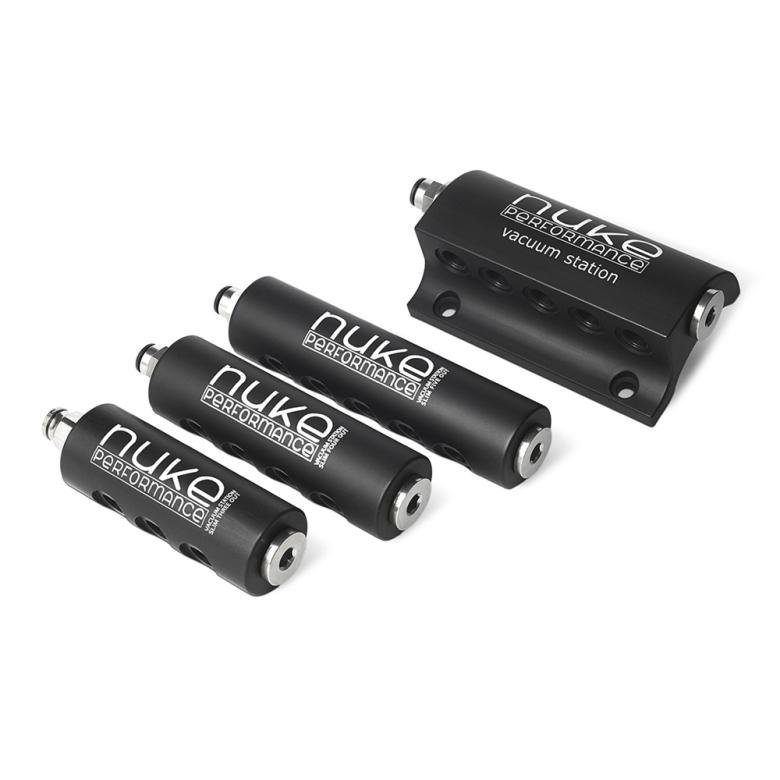

Nuke Performance offers the Slim lineup with 3, 4, or 5 outlet ports. The classic Nuke Performance vacuum station with integrated brackets and 5 outlet threads is also available for a nice-looking installation.


 Vacuum Station Slim 5 outlets specifications :
For more information about specifications, contact us directly.

 Part number 600-01-204
 EAN 7340209501896
 Inlet thread 2 x 1/4 BSPP
 Outlet thread 5 x 1/8 BSPP
 Integrated brackets NO
 Length 130 mm (5.12") *
 Height 29 mm (1.14")
 Depth 29 mm (1.14")
 Weight 195 g (0.43lb) *
 For motorsports use YES

 * Measurements including the supplied fittings

 Nuke Performance Vacuum Station Slim 5 outlets includes :
1 x Vacuum station manifold
1 x 1/4 BSPP Quick Connect to 6mm line
1 x 1/4 BSPP Plug

 Download Product Sheet (.pdf)
 Accessories / Spare Parts

Specifications

 Vacuum Station Slim 5 outlets specifications :
For more information about specifications, contact us directly.

 Part number 600-01-204
 EAN 7340209501896
 Inlet thread 2 x 1/4 BSPP
 Outlet thread 5 x 1/8 BSPP
 Integrated brackets NO
 Length 130 mm (5.12") *
 Height 29 mm (1.14")
 Depth 29 mm (1.14")
 Weight 195 g (0.43lb) *
 For motorsports use YES

 * Measurements including the supplied fittings

 Nuke Performance Vacuum Station Slim 5 outlets includes :
1 x Vacuum station manifold
1 x 1/4 BSPP Quick Connect to 6mm line
1 x 1/4 BSPP Plug

 Download Product Sheet (.pdf)
 Accessories / Spare Parts
