Air Jack Skate distance plates

Optional spacers for Nuke Performance Air Jack Skates: Fine-tune the lift height of your Air Jack Skates with optional spacers.

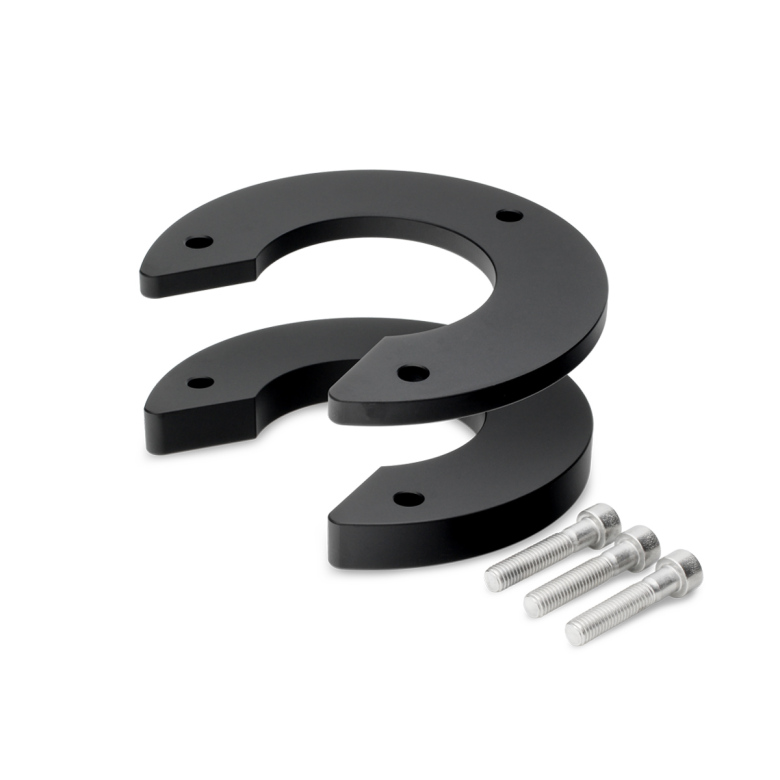

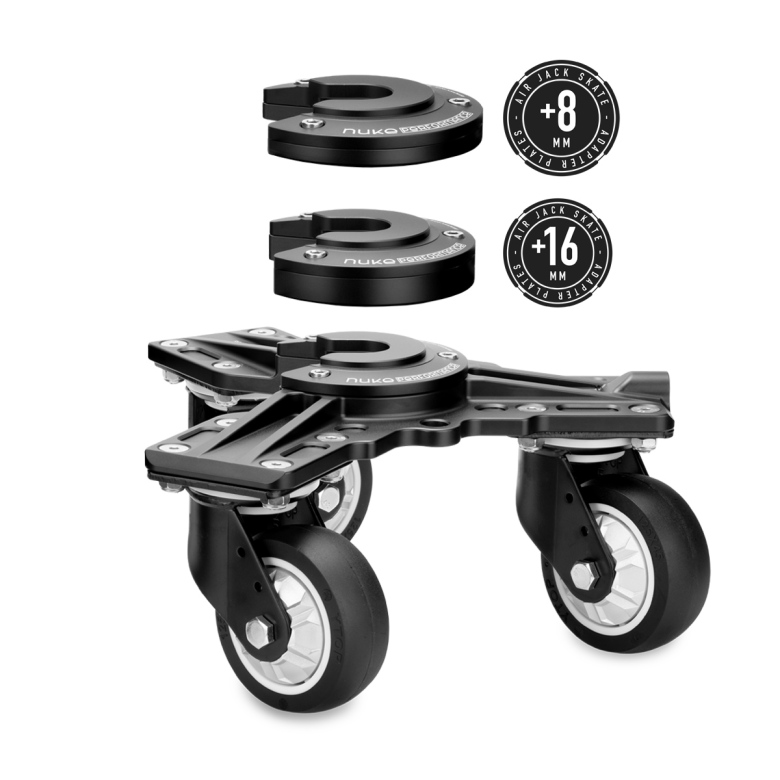

The Nuke Performance Distance Plates allow precise adjustment of the lift height when lowering your vehicle onto Air Jack Skates. Available in 8 mm (0.31”) and 16 mm (0.62”) thicknesses, these spacers help you achieve the perfect setup. Each spacer kit is delivered with the required stainless steel bolts when used with Air Jack 60C skates (single spacer per skate).

Available in two different sizes, make sure to select when ordering:

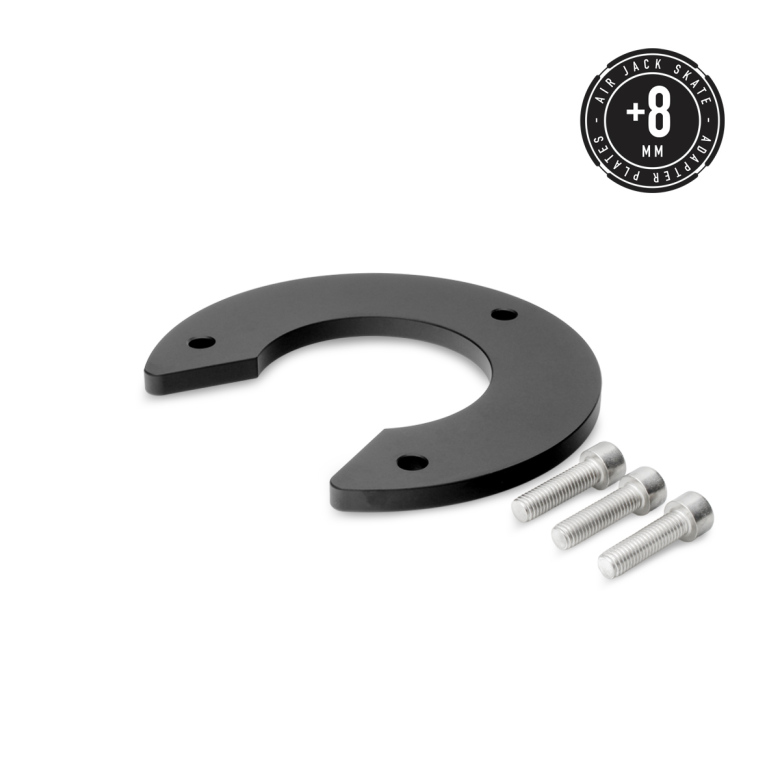

Air Jack Skate distance plate, 8mm Part # : 570-05-213

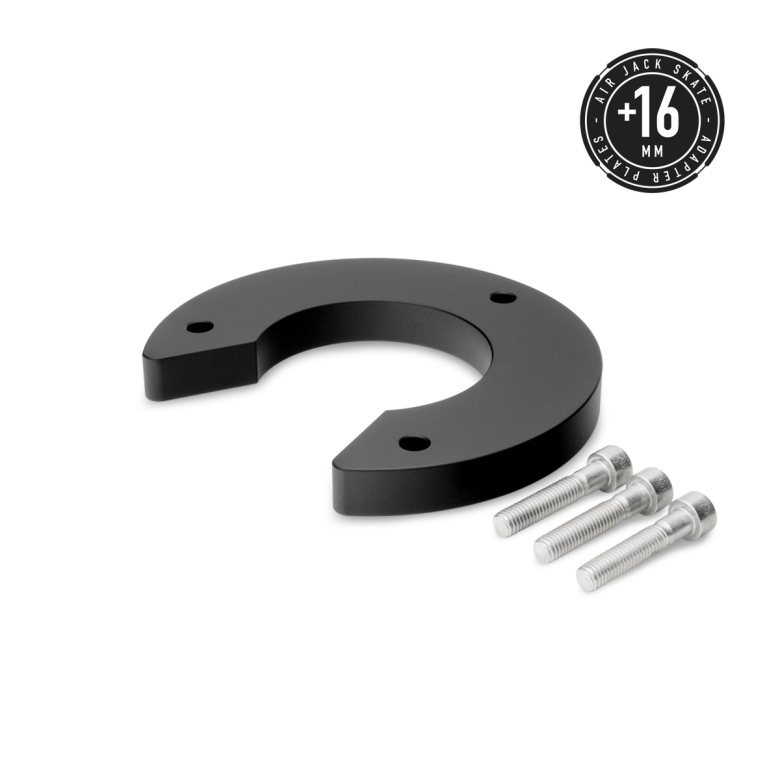

Air Jack Skate distance plate, 16mm Part # : 570-05-214

 Air Jack 60C Compatibility
The Air Jack 60C offers a 26 mm (1.02”) clearance between the max lift height and the skate top plate.

 A single +8 mm or +16 mm spacer can be installed
 Required bolts are included with each spacer

Included hardware per configuration:
+8 mm = 3x MC6S M8x40 (included)
+16 mm = 3x MC6S M8x50 (included)
+24 mm = Not compatible

 Using distance plates on Air Jack 90C skates :
The Air Jack 90C offers a 32 mm (1.26”) clearance between the max lift height and the skate top plate.

 A single +8 mm, +16 mm, or one of each (+24 mm) can be installed
 Bolts are not included with the spacers

Required hardware per configuration:
+8 mm = 3x MC6S M8x50
+16 mm = 3x MC6S M8x55
+24 mm = 3x MC6S M8x65 *
* Requires one of each spacer (8 mm + 16 mm)

 Air Jack Skate distance plate, 8mm Specifications:
For more information about specifications, view the product manual.

 Air Jack Skate distance plate, 16mm Specifications:
For more information about specifications, view the product manual.

 Download Product Manual (.pdf)
 Accessories / Spare Parts

 Air Jack Skate distance plates includes:
1 x Distance plate, 8mm or 16mm
3 x Stainless steel bolts, MC6S M8x30 or M8x40
