Carbon Oil Catch Can 0.75 liter

Partno: 265-01-202
Partno: 265-01-203

Price:

€ 326,88
€ 326,88
    Add ons:
Add inlet AN-10 ORB Fittings
X
Add outlet AN-10 ORB Fitting
X
Add petcock drain kit
X
  You can only make one selection per category.
Select Version:

   FAST SHIPPING WORLDWIDE
   60-DAY SATISFACTION GUARANTEE
   SAFE AND SECURE
PAYMENT METHODS

Product information

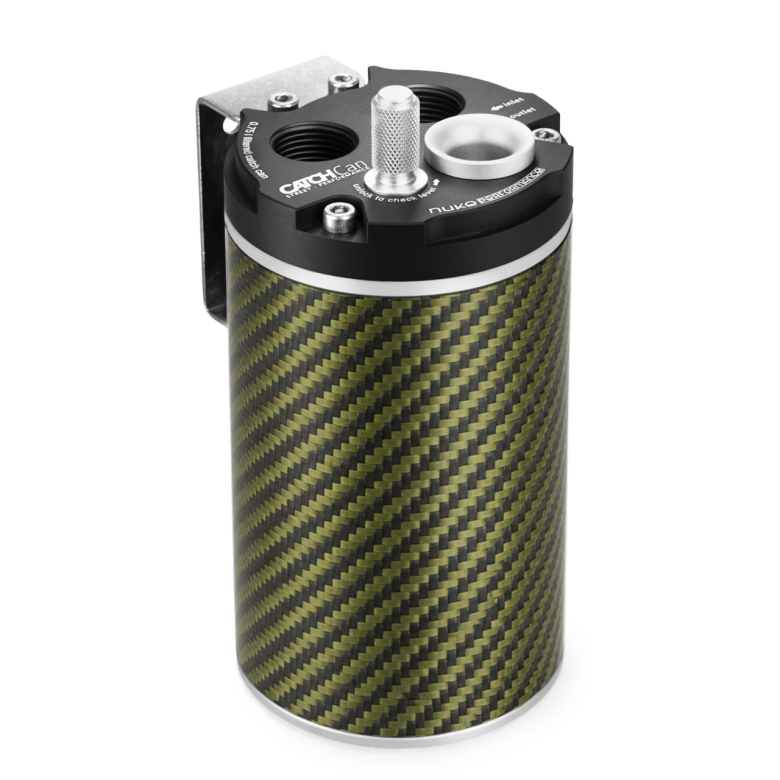

Nuke Performance universal 0,75 liter Oil Catch Can with its canister in real lightweight carbon. Available in glossy and matte versions.
Universal Dual inlet Catch Can with internal baffling and with a unique 300-micron filtered outlet port. Equipped with dual AN-10 ORB inlets for easy adaptation and installation. Dual filtration breather for competition, motorsports, and tuning usage for any kind of vehicle that is in need of a crankcase gas catch can. Can be used for both atmospheric and recirculating setups.

 Real-Carbon Oil Catch Can
 Choose between glossy and matte carbon finish
 Save an incredible -25% in weight
 Made in Sweden

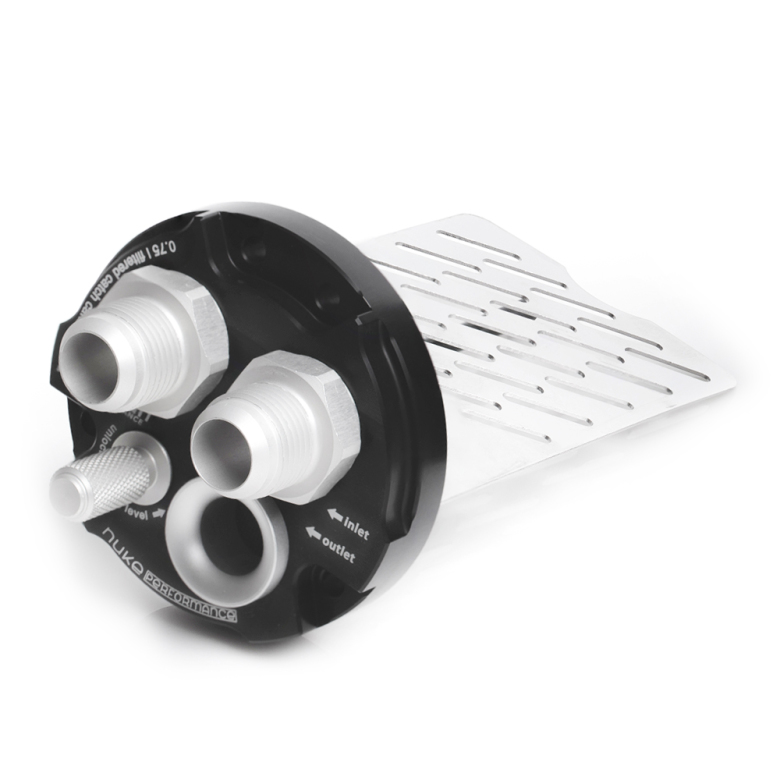

 300-micron filter and stainless steel internal baffling
 AN-10 ORB threads, for the highest possible flow

 Atmospheric and recirculating installation with the same catch can.
The Carbon Oil Catch Can 0.75 liters uses AN-10 ORB threads, both for the dual inlet and for the single outlet. This gives you a wide range of fittings and applications. For atmospheric setup, you use the included aluminum trumpet for a clean look and high functionality.



 World-class dual filtration with maximized functionality with the filtered outlet port.
This unique dual internal filtration system prevents particles from escaping the breather with the 300-micron filter disc used both when using the catch can for atmospheric or recirculating installation. The dual filtration system makes sure to filter your crankcase gasses and gives you outstanding filtration which saves your engine in the short and long run.

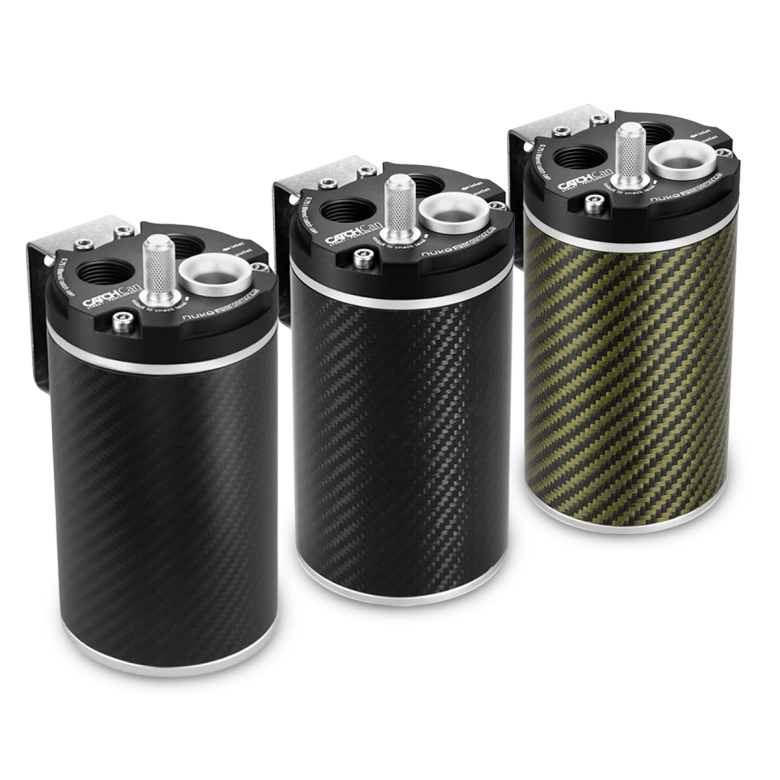

 Real lightweight Carbon Oil Catch Can - first of its kind, now both available in glossy and matte finish.
The series of Nuke Performance Oil Catch Cans are used worldwide already, and within every kind of motorsports and tuning style but we thought we could take it to the next level - therefore we now have developed a lighter, more "bad-ass-looking" top-notch carbon version of our Performance Catch Can of 0,75-liter internal capacity. This version is as much as 25% lighter than the ordinary version. Available in both glossy and matte carbon finishes to accommodate all styles.



 Anodized dip stick for easy reading of internal level.
It comes with an easily accessible dipstick for fast and easy reading of the internal level, it should be easy and functional and fast to check the level between laps on the race track, or when checking your levels before hitting the track or streets is as easy as it gets. Drainage is made easy with the optional peacock valve that connects to the 1/4 drainage thread at the bottom. Both the dual inlet and the single outlet port use AN-10 ORB fittings for the highest possible flow and are available in a large variation. AN-10 ORB to AN-6, AN-8, AN-10, and AN-12 male fittings are sold separately as accessories.
An-10 ORB Plug Part # : 700-04-117 *
AN-10 ORB to AN-6 Male Part # :
700-01-108
AN-10 ORB to AN-8 Male Part # : 700-01-109
AN-10 ORB to AN-10 Male Part # : 700-01-110
AN-10 ORB to AN-12 Male Part # : 700-01-111
* used for single inlet setup, blocks the additional inlet port.



 Drainage is made easy with the optional drainage kit.

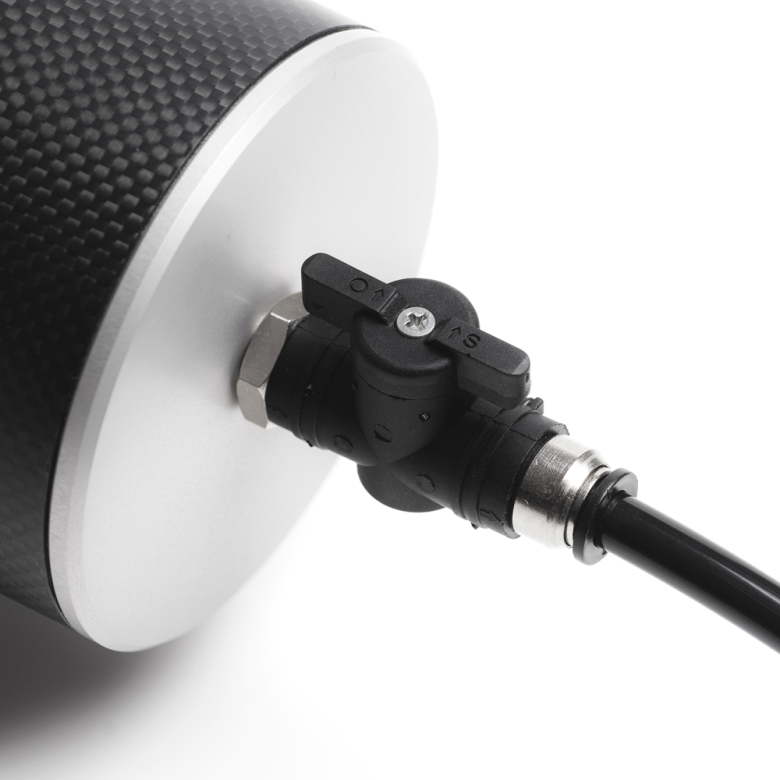

Drainage is made easy with the optional peacock valve that connects to the 1/4 drainage thread at the bottom. It comes with a 1/4" peacock valve that fits straight into the bottom of the catch can. Route the included 2 m / 6 ft hose to an easy-access location, for example, the wheelhouse. It makes it easy to drain/collect the residual products without having to disassemble the Catch Can from the vehicle.
Catch Can Drainage Kit Part # : 265-10-101

 Made in Sweden, guarantees the highest possible quality.
Developed, designed, and manufactured in Sweden, in-house by Nuke Performance. This is of the highest possible quality and with the same hallmark as all the other range of lightweight motorsports range from Nuke Performance.
This guarantees the highest possible quality - there is no substitute for the quality of Nuke Performance.


 Carbon Oil Catch Can 0.75 liter Specifications:
For more information about specifications, contact us directly.

 Catch can capacity 0.75 liter (0.79 qt)
 Inlet ports / threads 2 x AN-10 ORB - view assortment
 Outlet port / thread 1 x AN-10 ORB - view assortment
 Filtered outlet port YES, 300-micron filter disc
 Internal baffle YES, stainless steel baffle
 Drainage port / thread 1 x 1/4 BSPP, plug included
 Included bracket YES, stainless steel bracket
 Dipstick YES, aluminum dipstick included
 Height * 162 mm (6.38")
 Width 90 mm (3.54")
 Depth 106.4 mm (4.19")
 Weight * 754 g (1.66 lb)
 Setup available Recirculating / atmospheric use
 Part # / EAN - Glossy carbon 265-01-202 / 7340209501353
 Part # / EAN - Matte carbon ‌‌265-01-203 / 7340209506006

 * without included / additional fittings

 Nuke Performance Carbon Oil Catch Can 0.75 liter Includes:
1 x 0.75 liter capacity carbon catch can (matte or glossy depending on the version)
1 x Stainless steel bracket
1 x AN-10 7/8 UNF Atmospheric trumpet (for atmospheric use)
1 x 300-micron filter disc for the outlet port
1 x 1/4 BSPP Plug

 Product update 2022 :
To satisfy our customers´ wishes, our oil catch cans are now delivered with AN-10 ORB threads. Large range of fittings (view AN-10 ORB range) and even higher flow.

 Download Product Sheet (.pdf)
 Accessories / Spare Parts

Specifications

 Carbon Oil Catch Can 0.75 liter Specifications
For more information about specifications, contact us directly.

 Catch can capacity 0.75 liter (0.79 qt)
 Inlet ports / threads 2 x AN-10 ORB - view assortment
 Outlet port / thread 1 x AN-10 ORB - view assortment
 Filtered outlet port YES, 300-micron filter disc
 Internal baffle YES, stainless steel baffle
 Drainage port / thread 1 x 1/4 BSPP, plug included
 Included bracket YES, stainless steel bracket
 Dipstick YES, aluminum dipstick included
 Height * 162 mm (6.38")
 Width 90 mm (3.54")
 Depth 106.4 mm (4.19")
 Weight * 754 g (1.66 lb)
 Setup available Recirculating / atmospheric use
 Part # 265-01-202
 EAN ‌‌7340209501353

 * without included / additional fittings

 Nuke Performance Carbon Oil Catch Can 0.75 liter Includes:
1 x 0.75 liter capacity carbon catch can
1 x Stainless steel bracket
1 x AN-10 7/8 UNF Atmospheric trumpet (for atmospheric use)
1 x 300-micron filter disc for the outlet port
1 x 1/4 BSPP Plug

 Product update 2022 :
To satisfy our customers´ wishes, our oil catch cans are now delivered with AN-10 ORB threads. Large range of fittings (view AN-10 ORB range) and even higher flow.

 Download Product Sheet (.pdf)
