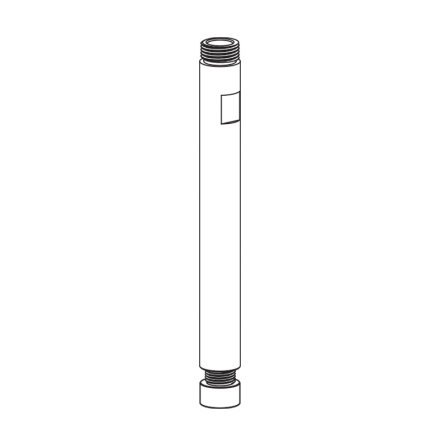

Electrical Connector for FST, FPH and CFC Unit
Price:
Add ons:
FAST SHIPPING WORLDWIDE FROM OUR HQ IN SWEDEN
60-DAY SATISFACTION GUARANTEE
SAFE AND SECURE PAYMENT METHODS
Product information
High-current electrical connector for fuel system applications, supplied with a fuel-safe Viton O-ring and nylon insulating washers for a secure and leak-free installation.
Rated for approximately 125 A per terminal and compatible with all fuel types, including gasoline, ethanol, methanol, and diesel. Commonly used in Nuke Performance Fuel Surge Tanks, Competition Fuel Cell Units (CFC Units), and Fuel Pump Hangers.
Dimension : M6
Length : 40mm
Hole Ø : 11.7mm
Max current : ≈125 Ampere / each
Tightening torque : 6Nm (4.42ft-lb)
Washer material : Nylon
O-ring material : Viton (FPM)
Fuel compatibility : Safe for all types of fuels
For added protection against accidental short circuits, an optional Electrical Connector Terminal Boot 11x7 mm (available here) is available for exposed terminals on the outside of the fuel tank.
Electrical connector terminal boot 11x7mm Part # : 150-10-140
Quantity : 1pc
