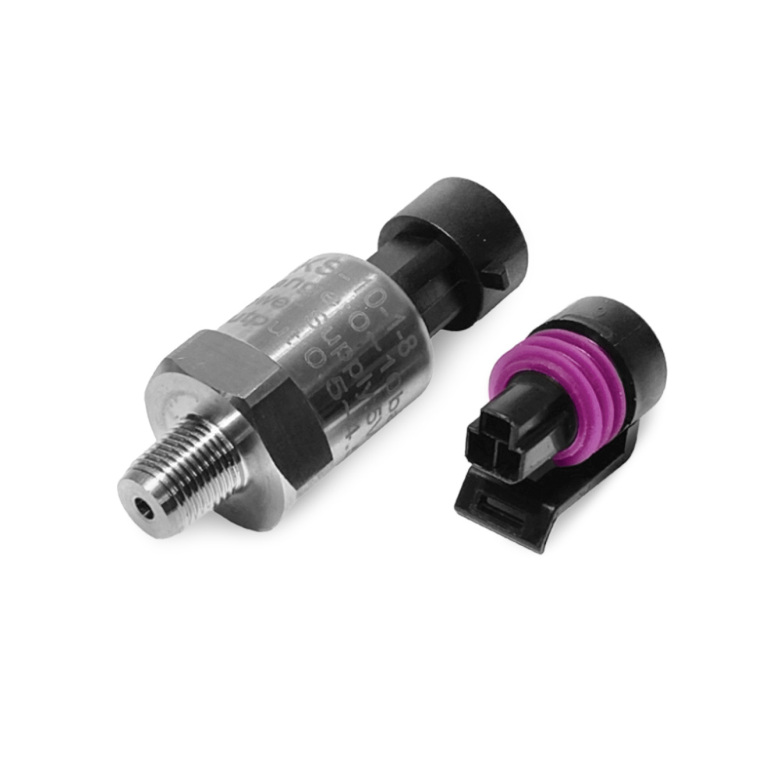

10 BAR (150 PSI) fuel/oil pressure sensor, 1/8 NPT, with connector

A pressure sensor that can be fitted to the Nuke Performance FPR100 series fuel pressure regulators.

Affordable and durable fuel and oil pressure sensor that fits straight into the 1/8 NPT thread of the Nuke Performance fuel pressure regulators: the FPR100s AN-6, FPR100m AN-8, and FPR100x AN-10.

 IP67, stainless steel (billet) body sensor
 For measuring fuel and oil pressure
 Compatible with motor oils, fuel, E85, and Bio Ethanol (RE85)

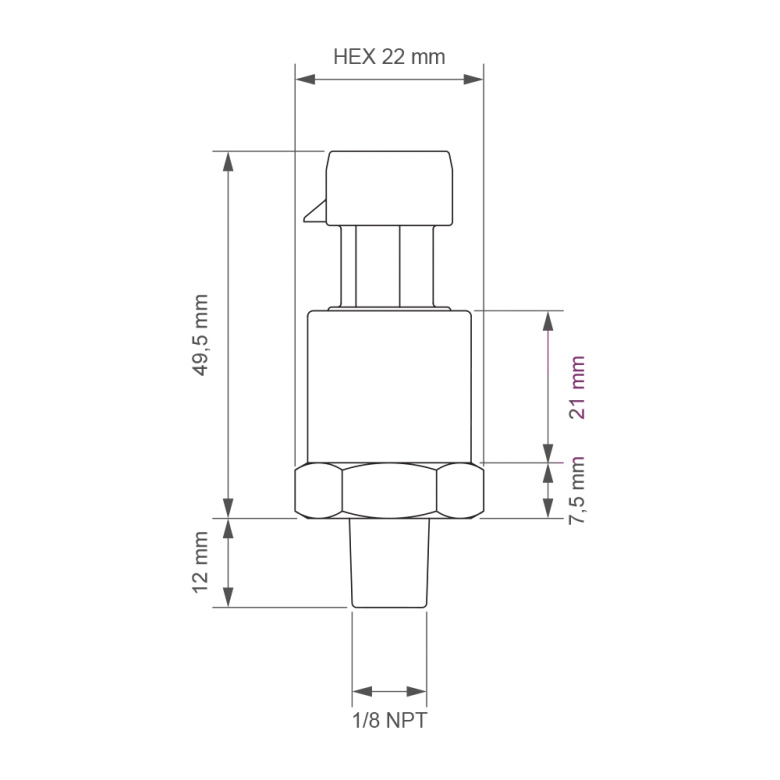

 1/8 NPT male thread

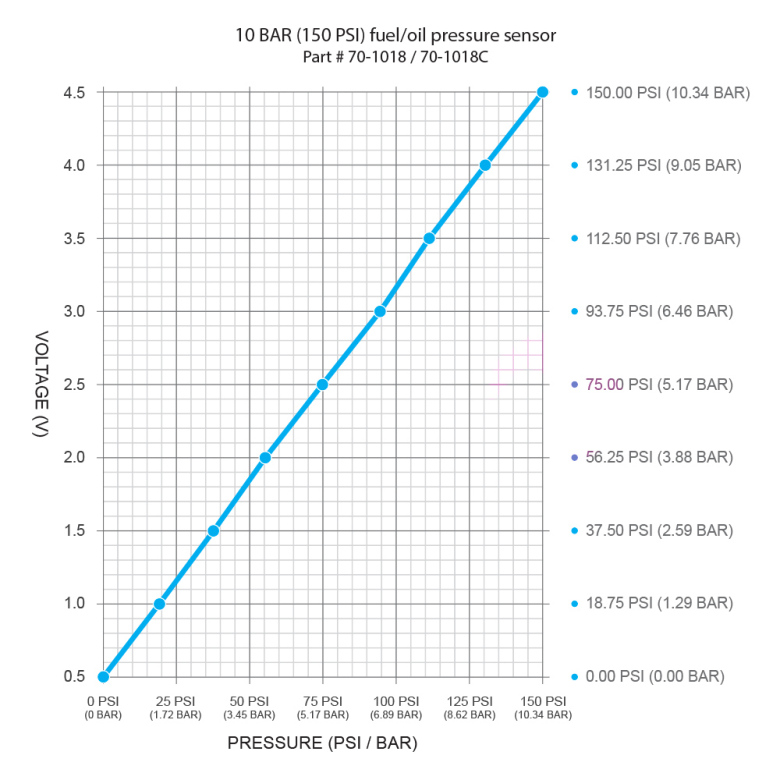

 Input 5V, Output 0.5 - 4.5V
 Working temperature: -10 to +60°C
 3-pole Packard-type connector with terminals including

Pin A : GND / Black
Pin B : Vcc(+) / Red
Pin C : Signal(+) / Blue/Green

Can be fitted to either a fuel pressure regulator with a 1/8 NPT female threaded port or adapters such as the Nuke Performance fuel pressure gauge adapter (available here).

Also available: With shielded cable Part # : 70-1018C

Disclaimer: This is not a Nuke Performance official product; this is only available as an accessory to our product range.

Quantity: 1pc
